思科rip配置实验

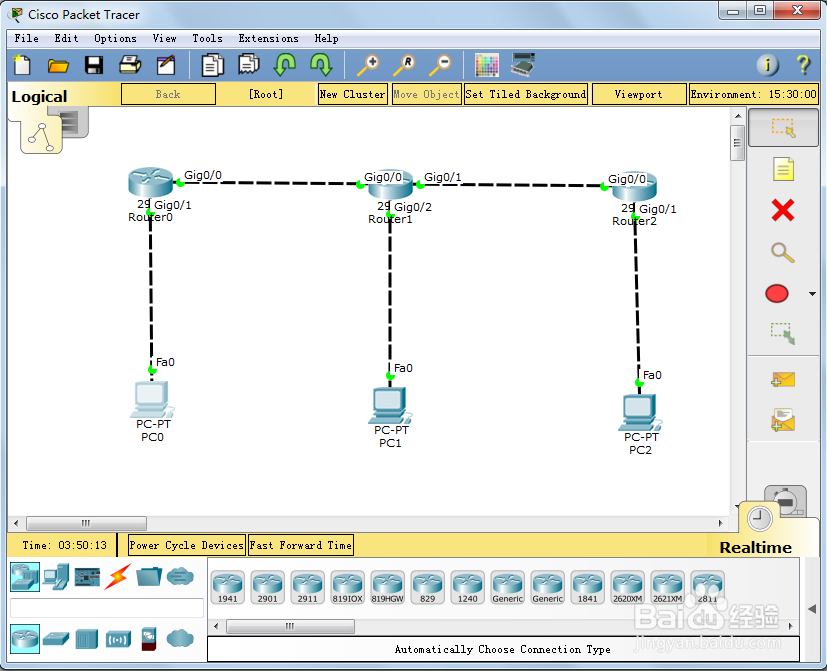

1、新建拓扑

2、ip地址规划：

ip规划：

pc0:192.168.10.2/24

pc1:192.168.20.2/24

pc2:192.168.30.2/24

router0 gig0/0:10.1.1.1/24

router0 gig0/1:192.168.10.1/24

router1 gig0/0:10.1.1.2/24

router1 gig0/1:10.1.2.1/24

router1 gig0/1:192.168.20.1/24

router2 gig0/0:10.1.2.1/24

router2 gig0/1:192.168.30.1/24

3、配置个路由器接口ip：

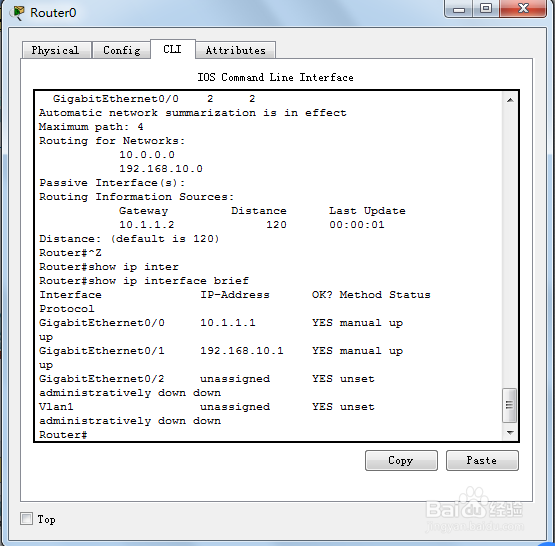

router0:

configure terminal

interface gigabitEthernet 0/1

ip address 192.168.10.1 255.255.255.0

no shutdown

exit

interface gigabitEthernet 0/0

ip address 10.1.1.1 255.255.255.0

no shutdown

exit

do show ip interface brief

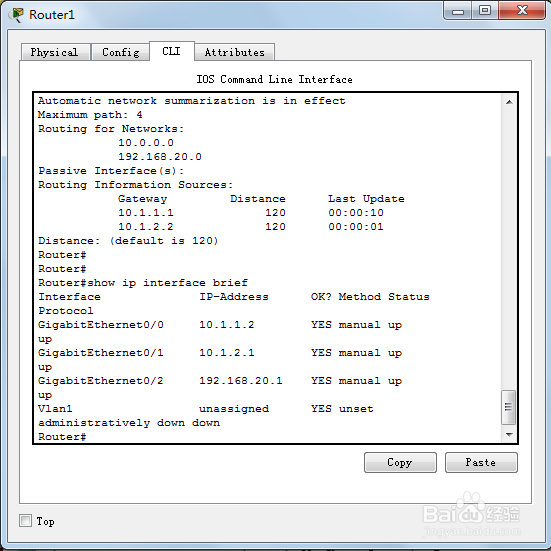

router1:

configure terminal

interface gigabitEthernet 0/1

ip address 10.1.2.1 255.255.255.0

no shutdown

exit

interface gigabitEthernet 0/0

ip address 10.1.1.2 255.255.255.0

no shutdown

exit

interface gigabitEthernet 0/2

ip address 192.168.20.1 255.255.255.0

no shutdown

exit

do show ip interface brief

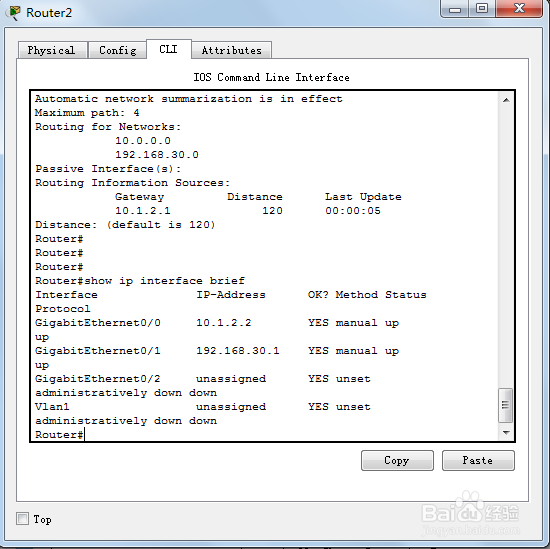

router2:

configure terminal

interface gigabitEthernet 0/0

ip address 10.1.2.2 255.255.255.0

no shutdown

exit

do show ip interface brief

4、配置路由器上的rip协议：

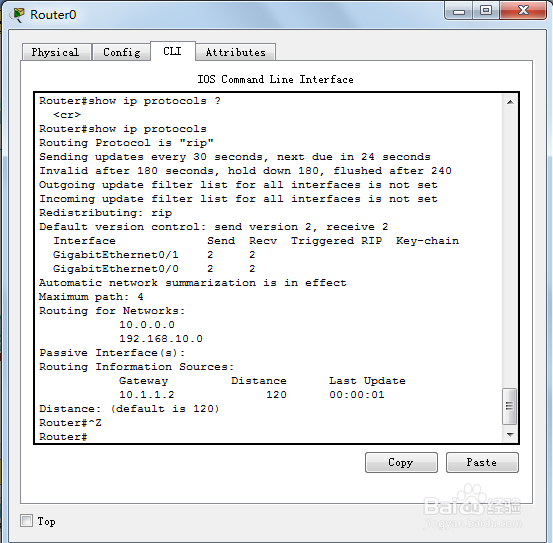

router0:

config t

router rip

version 2

network  192.168.10.0

network 10.1.1.0

do show ip protocols

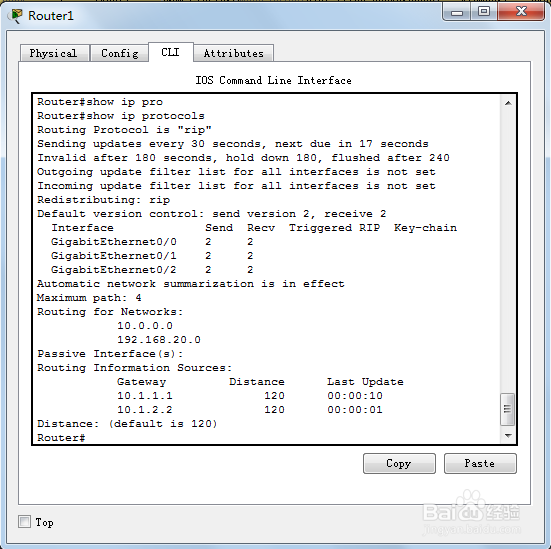

router1:

config t

router rip

version 2

network 10.1.2.0

network 10.1.1.0

network 192.168.20.0

do show ip protocols

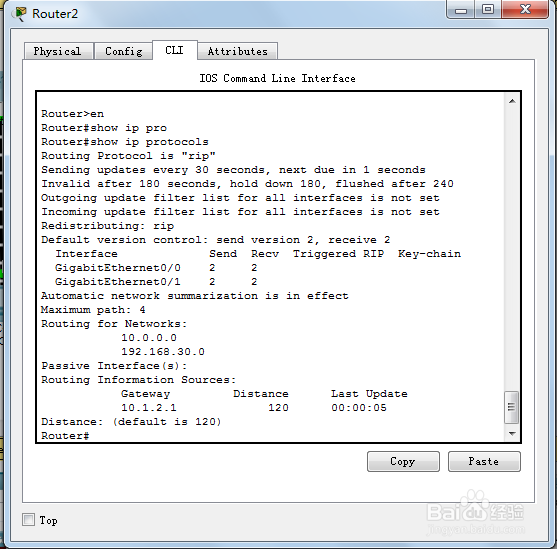

router2:

config t

router rip

version 2

network 10.1.2.0

network 192.168.30.0

do show ip protocols

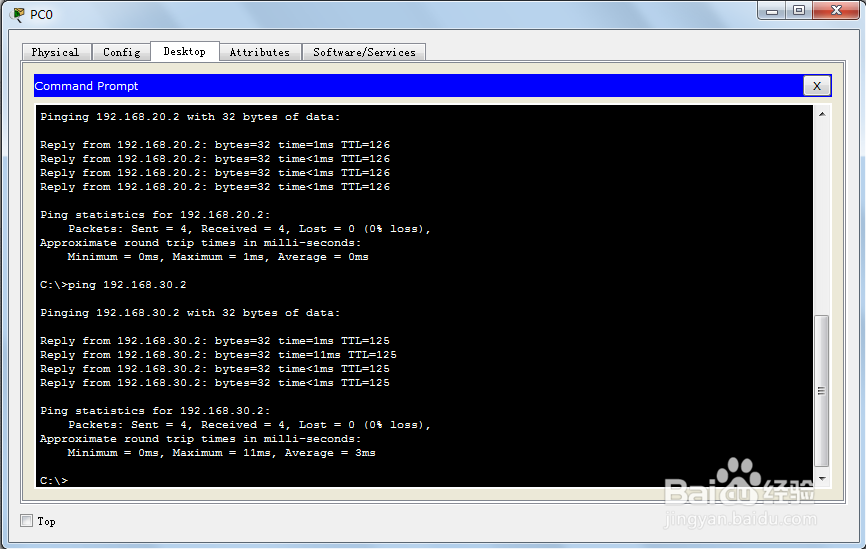

5、验证是否联通：

ping 192.168.20.2

ping 192.168.30.2
