51单片机程序设计：[6]88点阵显示动画

1、详细电路图连接蔡龇呶挞关系如下图。通过取模软件，分别去的下面需要的字模数组：unsigned char code tab[]={0x01,0x02,0x04,0x08,0x10,0x20,0x40,0x80};unsigned char code digittab[41][8]={//图形1 {0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00},/*"未命名文件",0*/ {0x00,0x00,0x3C,0x24,0x24,0x3C,0x00,0x00},/*"未命名文件",0*/ {0x00,0x7E,0x42,0x42,0x42,0x42,0x7E,0x00},/*"未命名文件",0*/ {0xFF,0x81,0x81,0x81,0x81,0x81,0x81,0xFF},/*"未命名文件",0*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},//图形2 {0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00},/*"未命名文件",0*/ {0x00,0x00,0x24,0x18,0x18,0x24,0x00,0x00},/*"未命名文件",0*/ {0x00,0x42,0x24,0x18,0x18,0x24,0x42,0x00},/*"未命名文件",0*/ {0x81,0x42,0x24,0x18,0x18,0x24,0x42,0x81},/*"未命名文件",0*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},//图形3 {0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00},/*"未命名文件",0*/ {0x00,0x00,0x24,0x18,0x18,0x24,0x00,0x00},/*"未命名文件",0*/ {0x00,0x10,0x24,0x1A,0x58,0x24,0x08,0x00},/*"未命名文件",0*/ {0x08,0x10,0x24,0x9A,0x59,0x24,0x08,0x10},/*"未命名文件",0*/ {0x0C,0x10,0xA4,0x9A,0x59,0x25,0x08,0x30},/*"未命名文件",0*/ {0x0E,0x90,0xA4,0x9A,0x59,0x25,0x09,0x70},/*"未命名文件",0*/ {0x8F,0x90,0xA4,0x9A,0x59,0x25,0x09,0xF1},/*"未命名文件",0*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},};

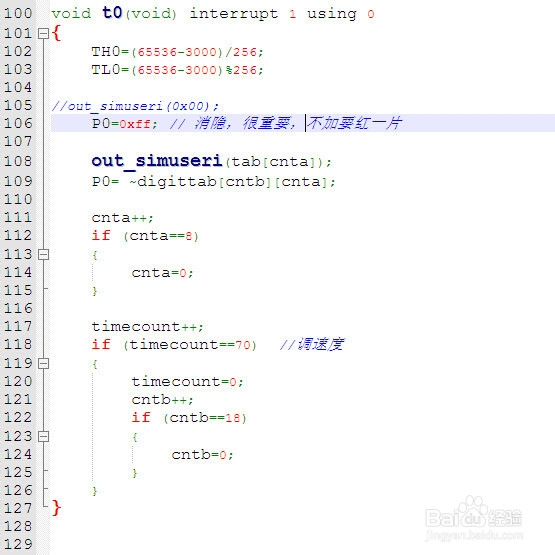

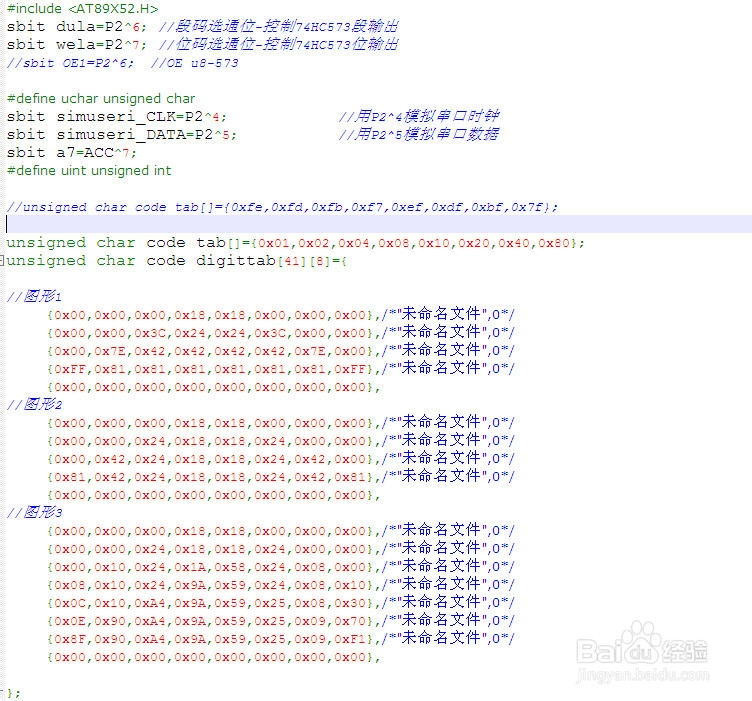

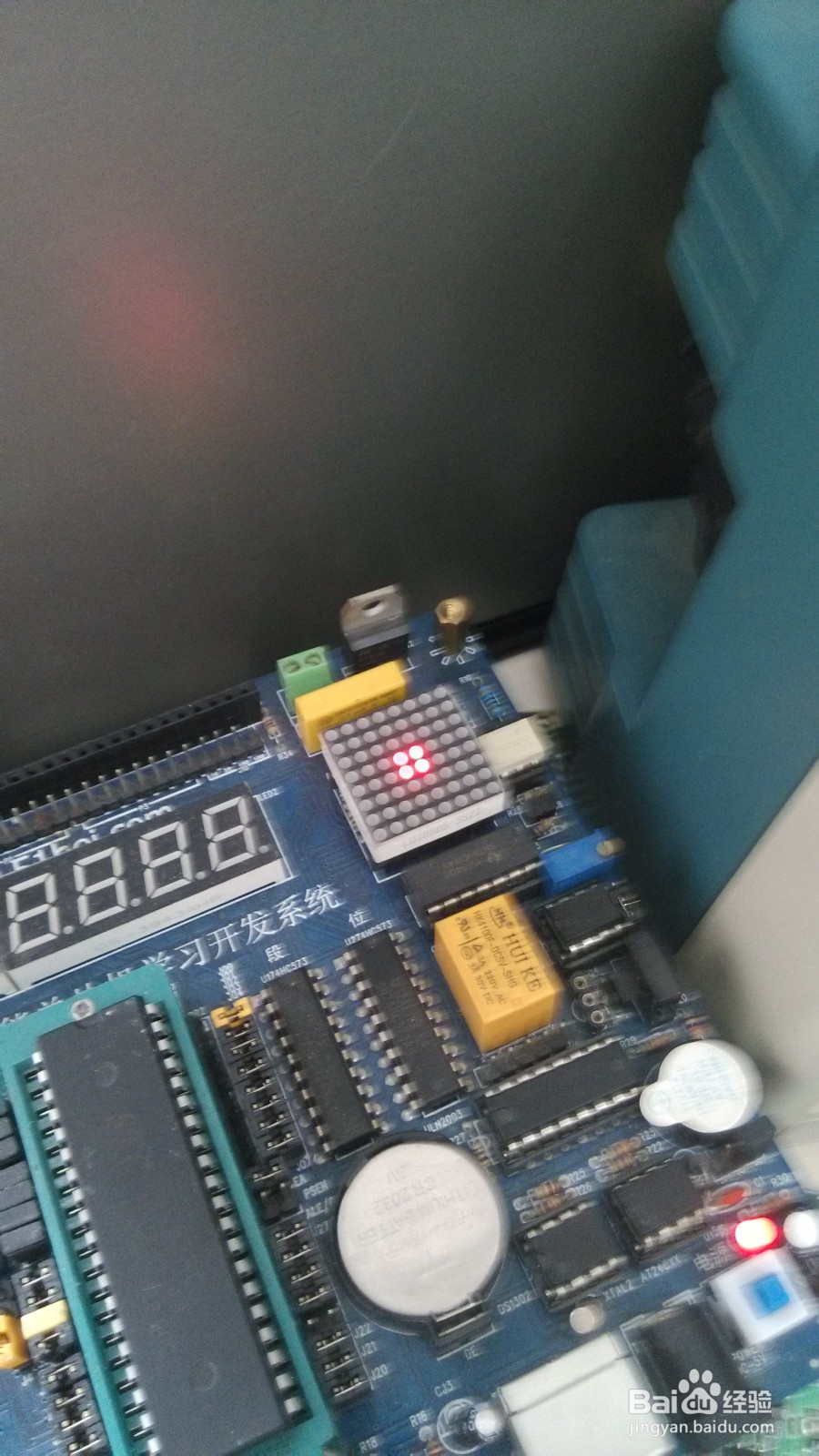

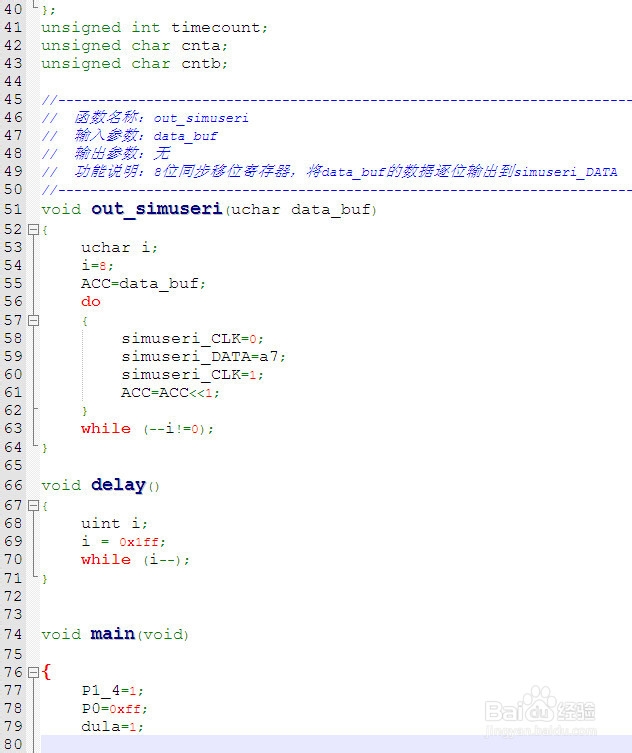

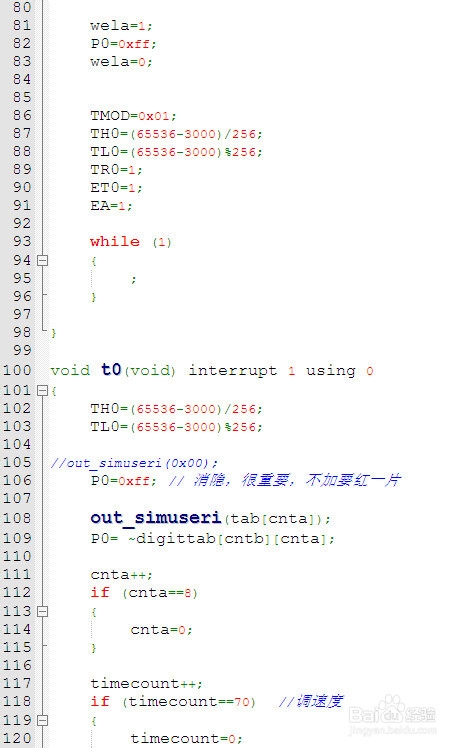

2、代码的规整版本图片：(多张图片，可以通过行号区别)
