python分段函数如何编写

1、

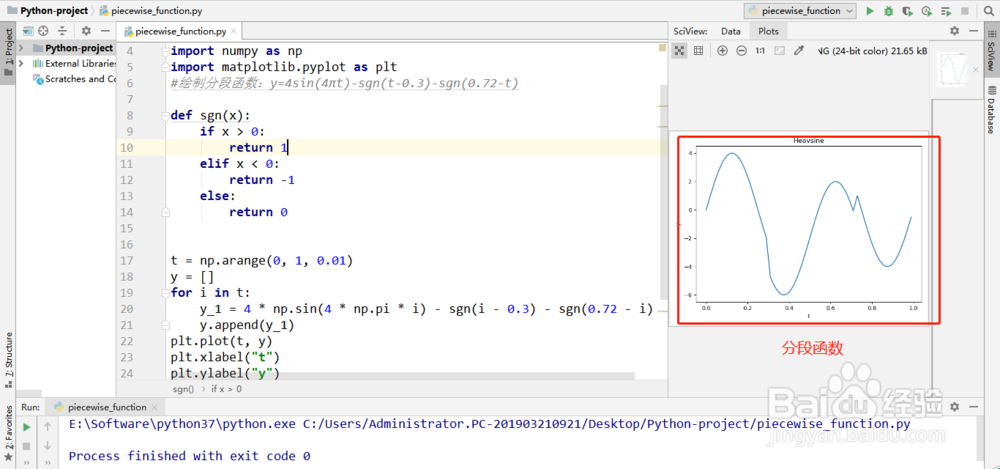

绘制分段函数：y=4sin(4πt)-sgn(t-0.3)-sgn(0.72-t)

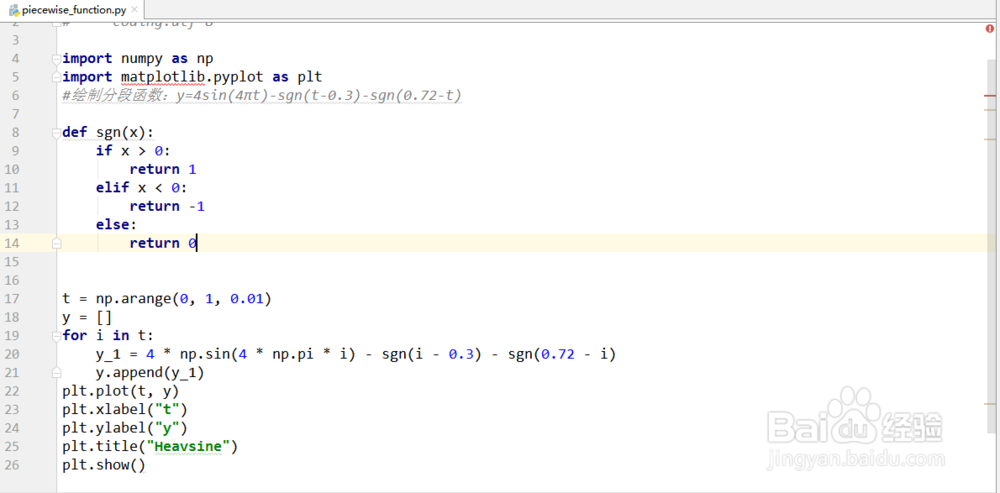

代码：

#!/usr/bin/python



# -*- coding:utf-8 -*-



import numpy as np



import matplotlib.pyplot as plt



#绘制分段函数：y=4sin(4πt)-sgn(t-0.3)-sgn(0.72-t)



def sgn(x):



    if x > 0:



        return 1



    elif x < 0:



        return -1



    else:



        return 0



t = np.arange(0, 1, 0.01)



y = []



for i in t:



    y_1 = 4 * np.sin(4 * np.pi * i) - sgn(i - 0.3) - sgn(0.72 - i)



    y.append(y_1)



plt.plot(t, y)



plt.xlabel("t")



plt.ylabel("y")



plt.title("Heavsine")



plt.show()

2、

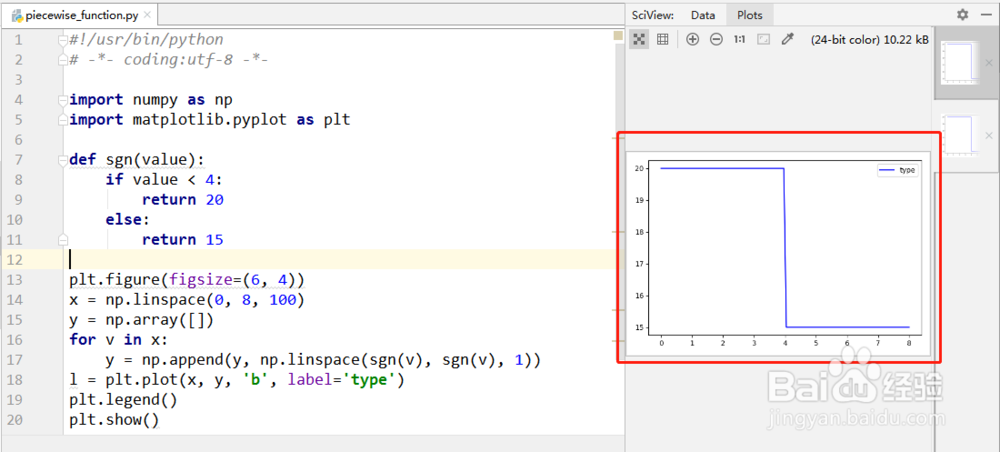

使用Matplotlib绘制分段函数：

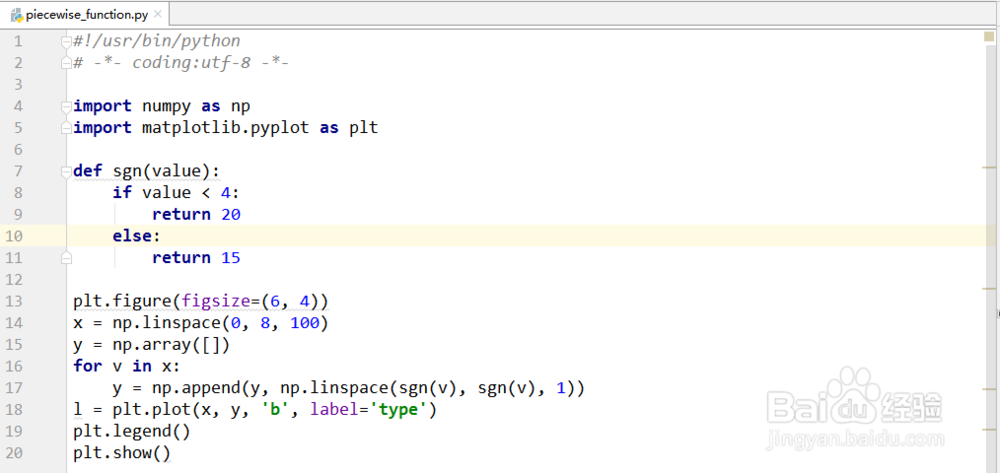

代码：

#!/usr/bin/python



# -*- coding:utf-8 -*-



import numpy as np



import matplotlib.pyplot as plt



def sgn(value):



    if value < 4:



        return 20



    else:



        return 15



plt.figure(figsize=(6, 4))



x = np.linspace(0, 8, 100)



y = np.array([])



for v in x:



    y = np.append(y, np.linspace(sgn(v), sgn(v), 1))



l = plt.plot(x, y, 'b', label='type')



plt.legend()



plt.show()

3、

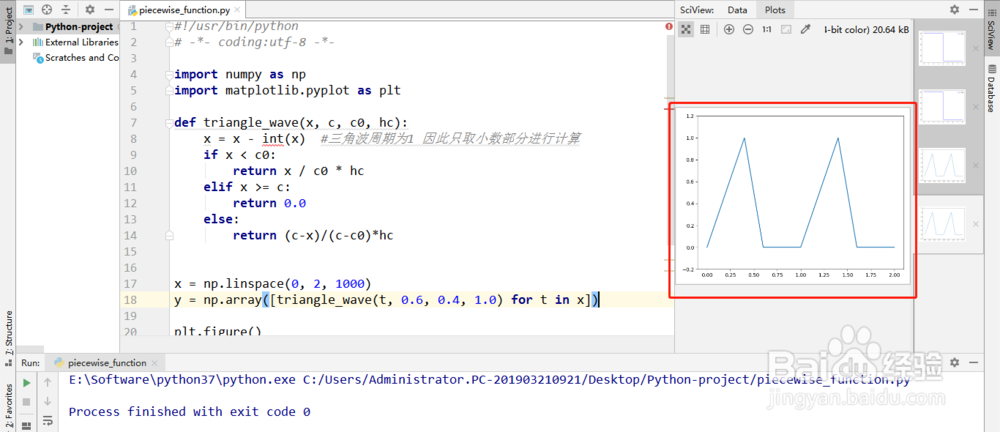

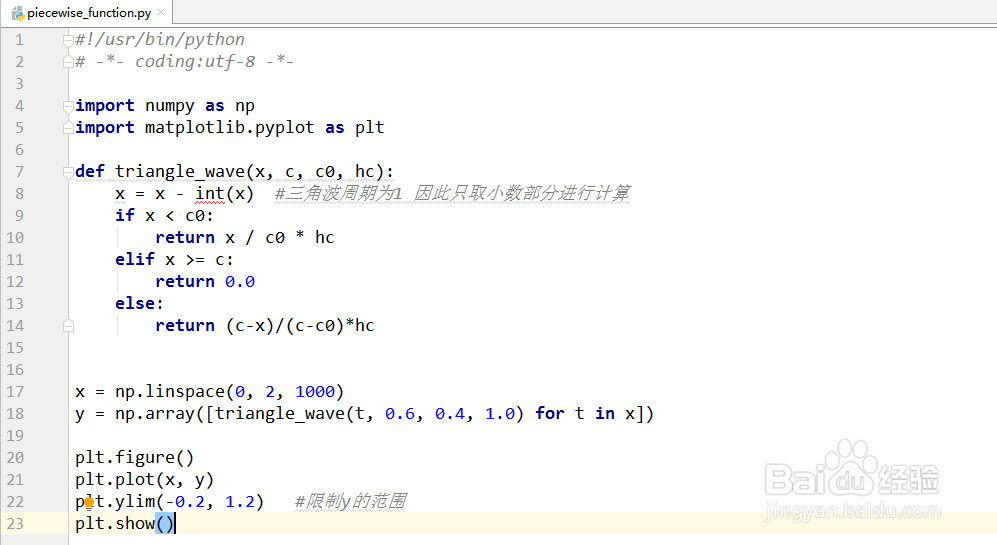

绘制三角波形：

#!/usr/bin/python



# -*- coding:utf-8 -*-



import numpy as np



import matplotlib.pyplot as plt



def triangle_wave(x, c, c0, hc):



   x = x - int(x)  #三角波周期为1 因此只取小数部分进行计算



   if x < c0:



       return x / c0 * hc



   elif x >= c:



       return 0.0



   else:



       return (c-x)/(c-c0)*hc



x = np.linspace(0, 2, 1000)



y = np.array([triangle_wave(t, 0.6, 0.4, 1.0) for t in x])



plt.figure()



plt.plot(x, y)



plt.ylim(-0.2, 1.2)   #限制y的范围



plt.show()
