TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]
本篇为《TOS9220/9221耐压-绝缘电阻测试仪说明书》，主要介绍该产品的使用方法以及常毡鹭跞锞见故障解决方案。

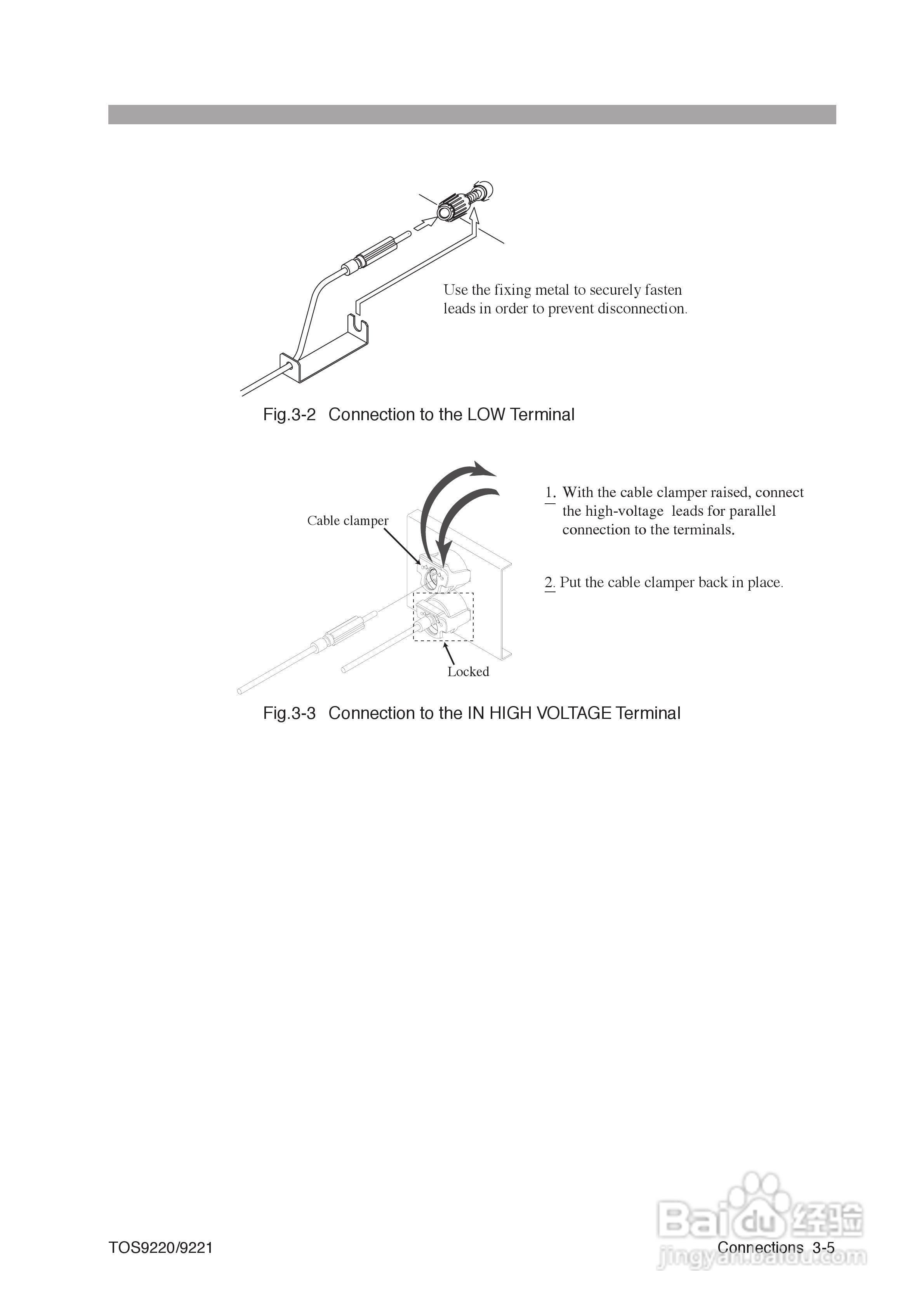

![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/5e615d715fdb36207a978b3cabc5260f89358d06.jpg)
![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/589f5b078801387018ec7c392d08a50f95fc8306.jpg)
![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/51cd85cec7f88a778b70cef96e4a2f27e6eff806.jpg)
![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/b7b28f87031c99c04c51a733af2fa872951fed06.jpg)

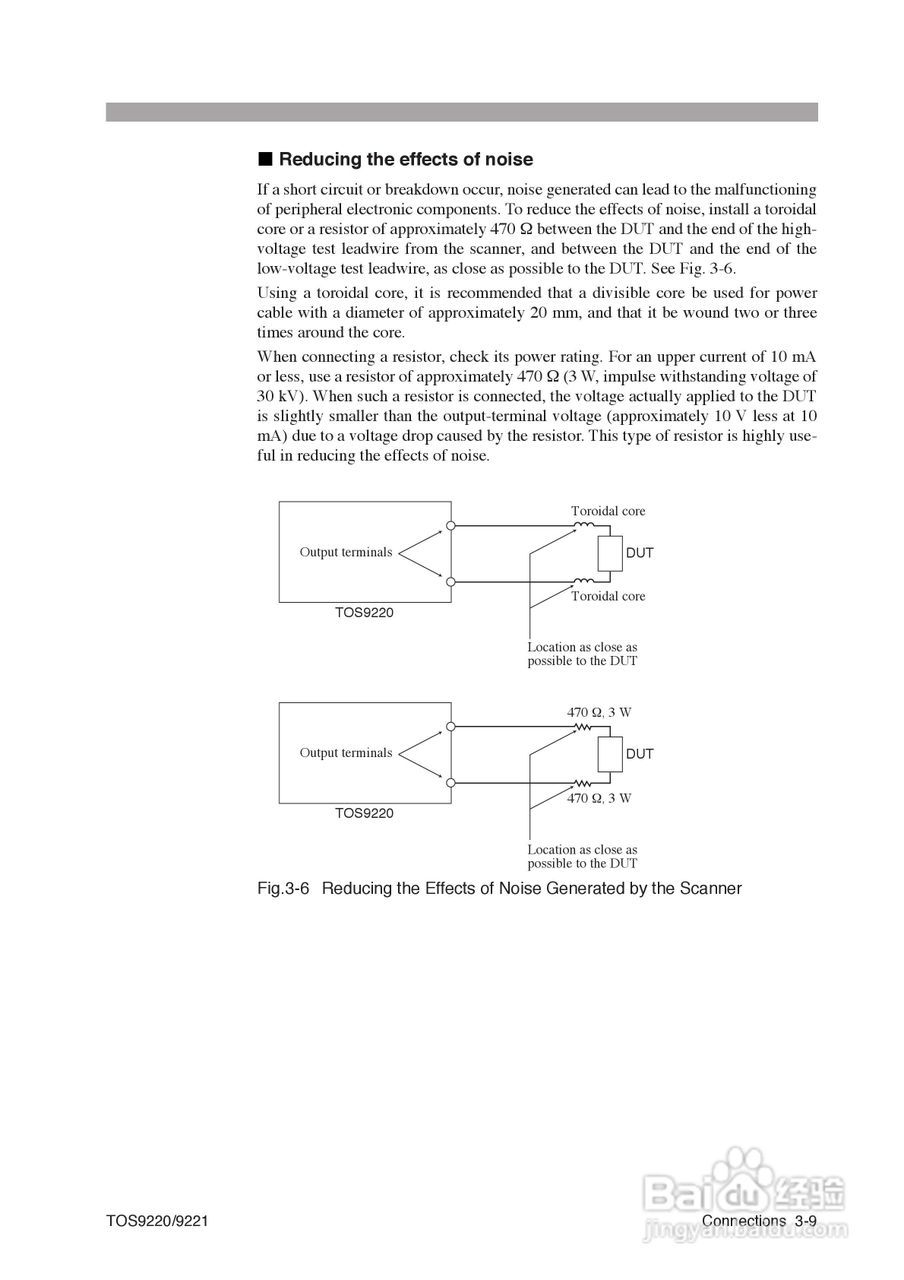

![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/7830e01d96d81819918de178876efbf203b3de06.jpg)
![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/df087f0f8b56ad04d0c5515cdae10ef85956d006.jpg)

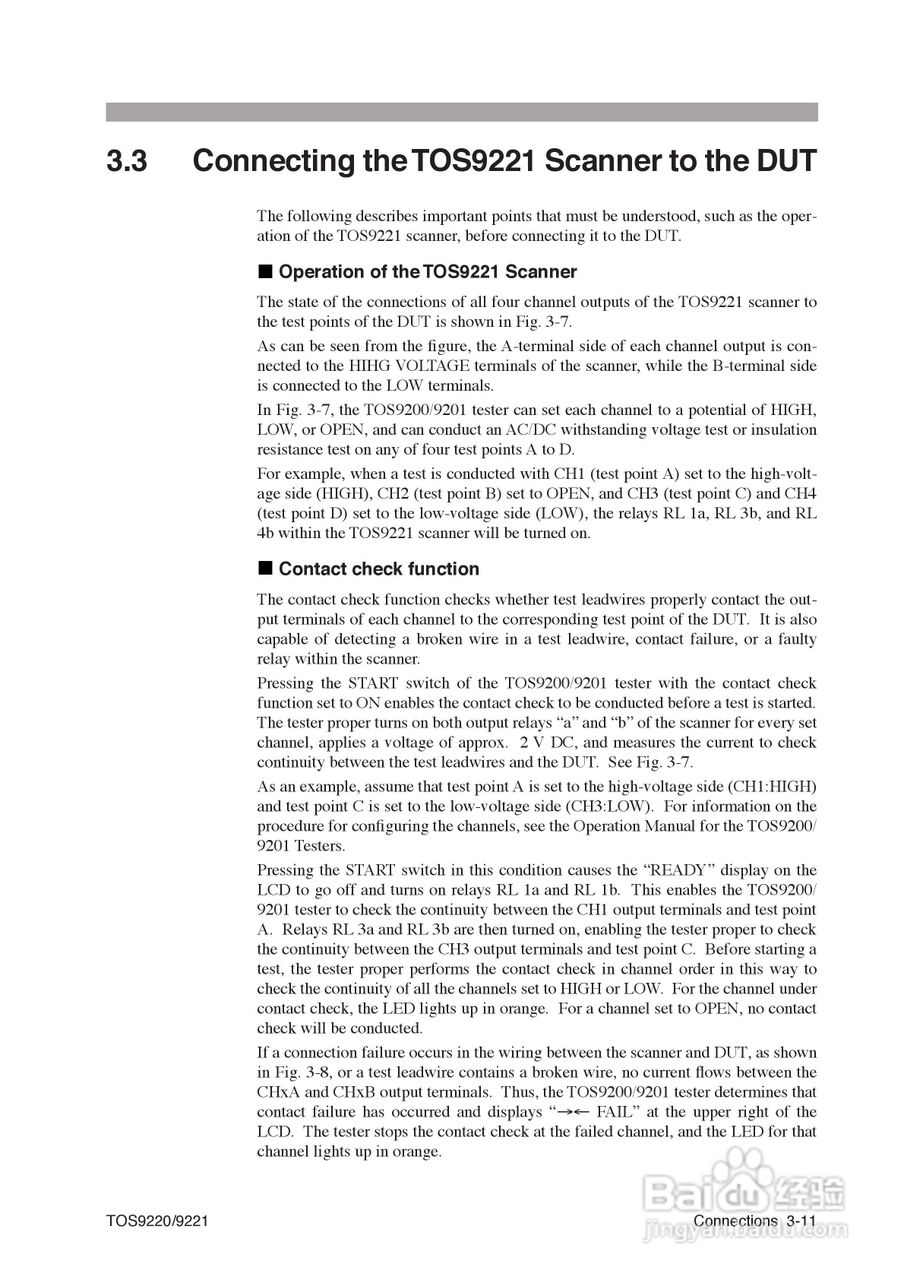

![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/50189b40102a04e2320c7cf72b7aa010bd33c206.jpg)

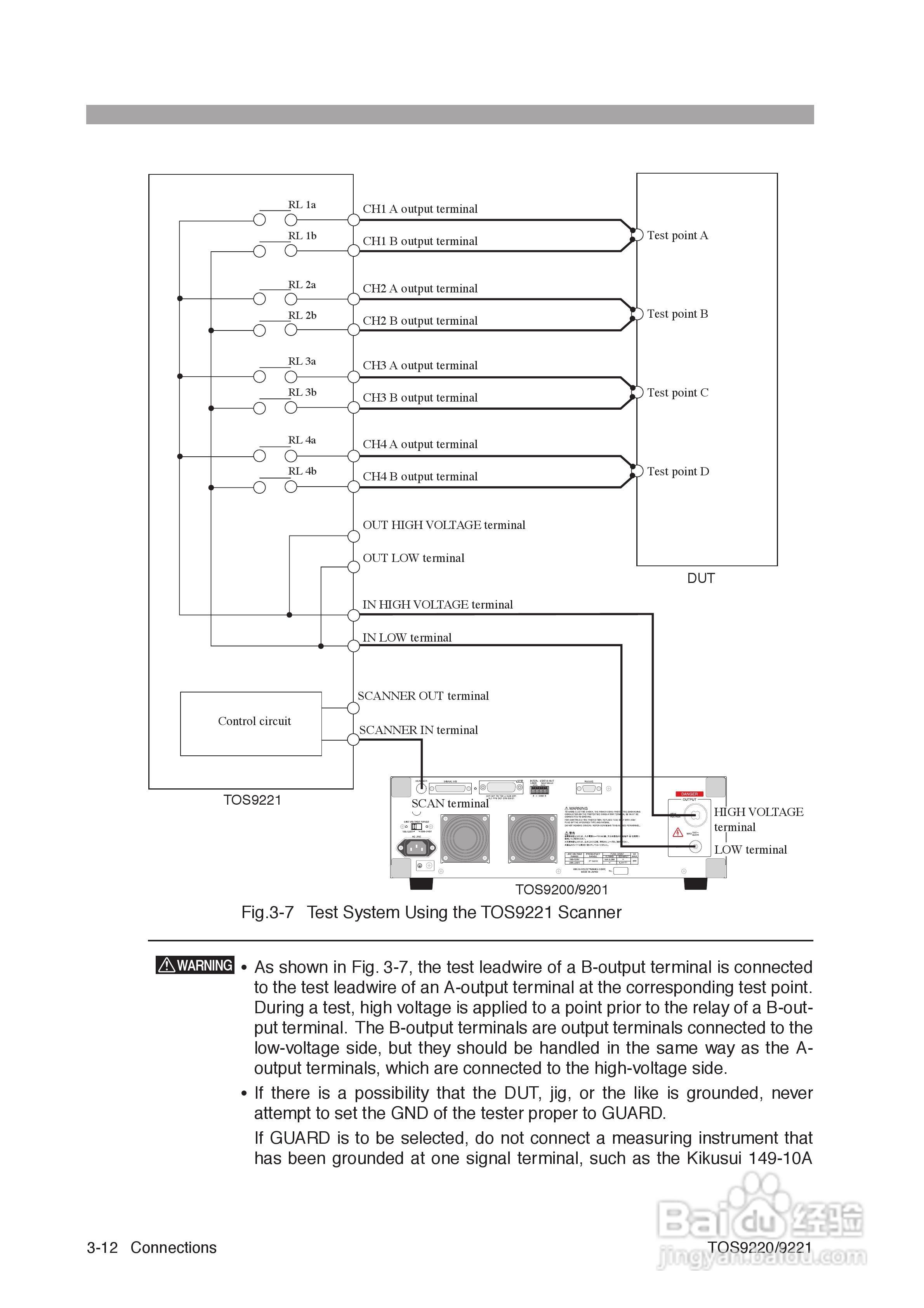

![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/a31e1214c27bd2829e27e7f33cb1eef97ebd3607.jpg)

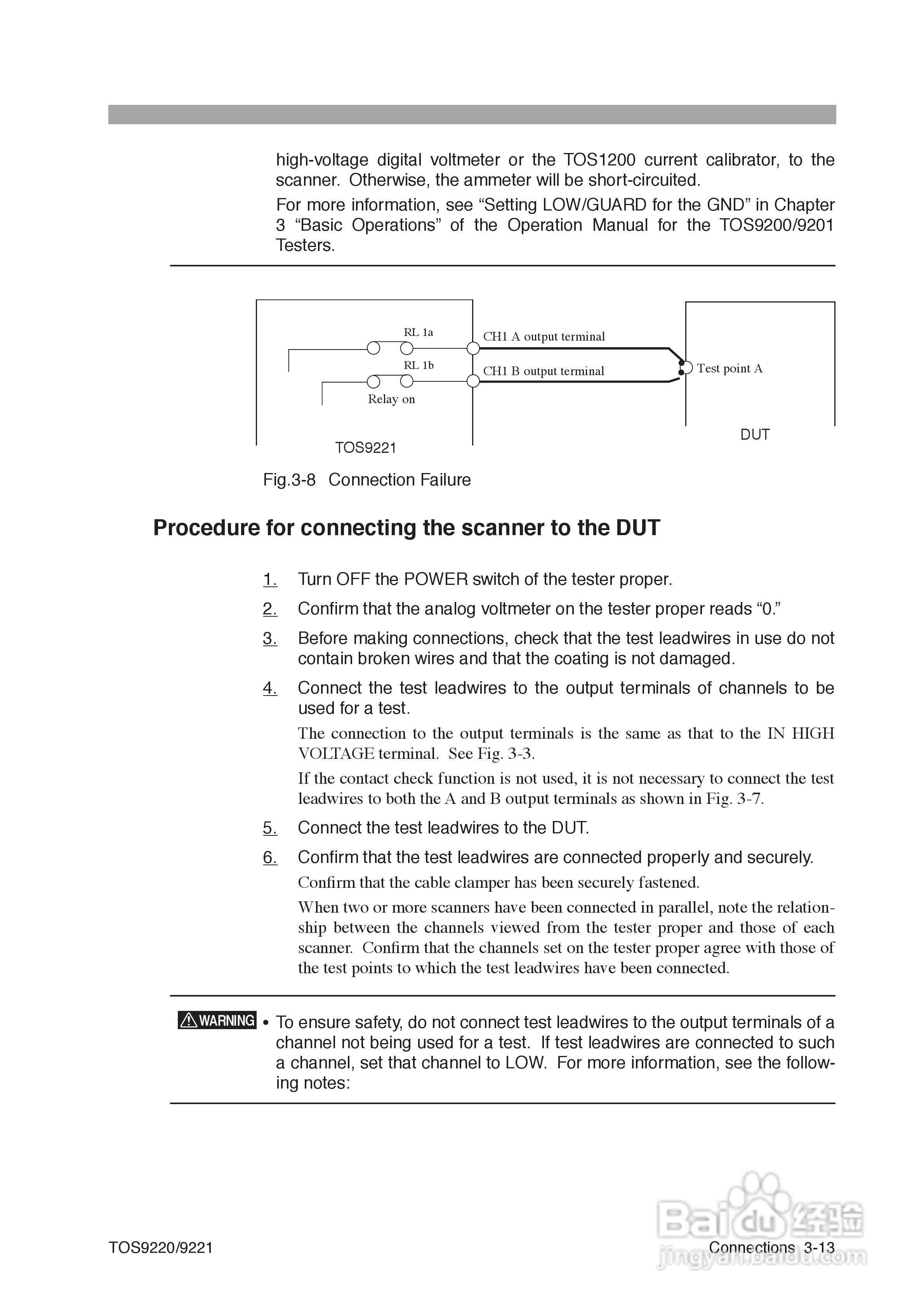

![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/35f2224133bad34121d3a782427622bc7cc52c07.jpg)
![TOS9220/9221耐压-绝缘电阻测试仪说明书:[4]](https://exp-picture.cdn.bcebos.com/2a1ecb460596b814d87ef3b643d246fe464e2207.jpg)
