OpenCV 2.4.9 +VS2013 开发环境配置

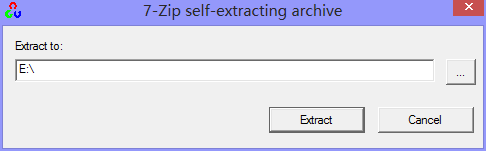

1、安装opencv2.4.9，解压，请务必记住自己解压的路径。宜家以我自己的路径为例D:\Program Files

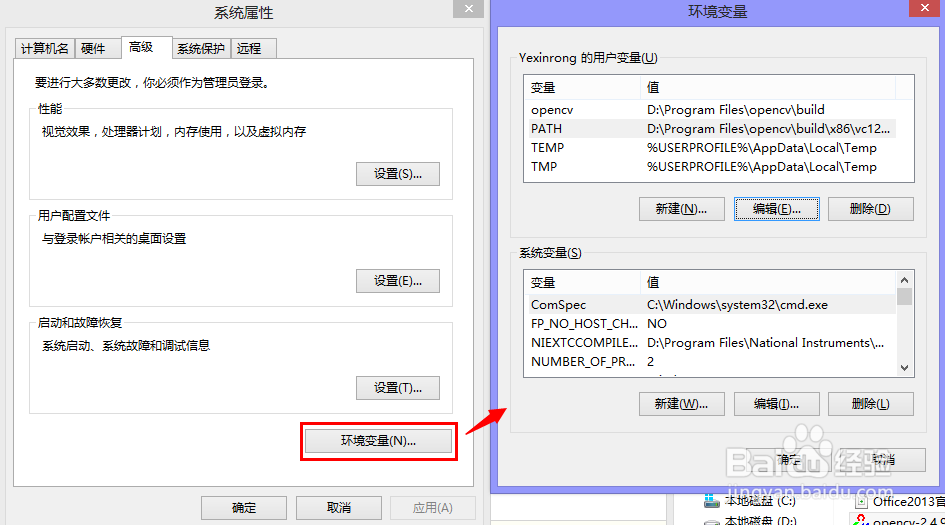

2、配置环境变量1、系统变量 Path：添加D:\Program Files\opencv\build\x86\vc12\bin2、用户变量：添加opencv变量，值D:\Program Files\opencv\build，添加PATH变量（有就不需要添加，但是值需要添加）值D:\Program Files\opencv\build\x86\vc12\bin说明：不管你系统是32位还是64位，路径目录均选择X86，因为编译都是使用32位编译；如果选用X64，则程序运行时候会出错。

3、新建visual C项目新建visual C++项目，如下图所示，项目选项注意：如下图。

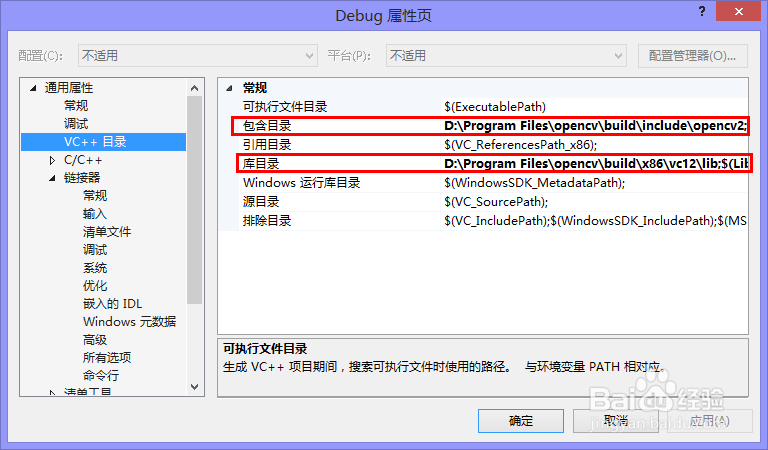

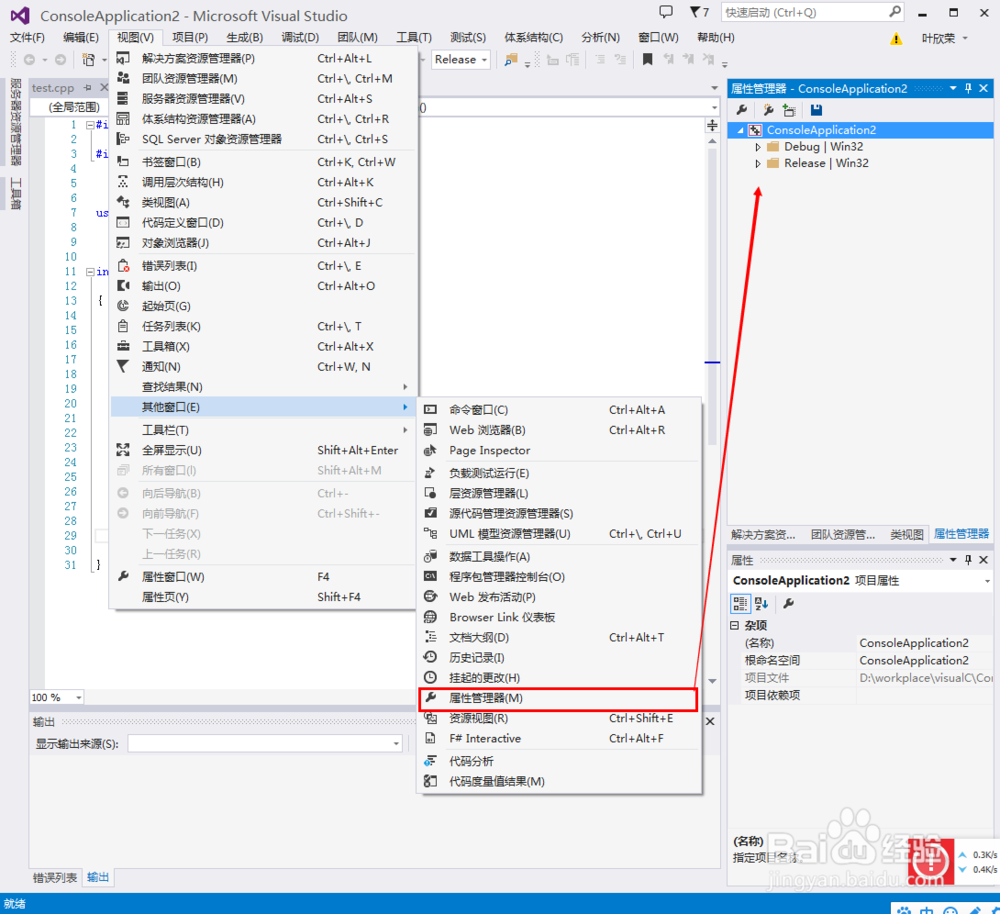

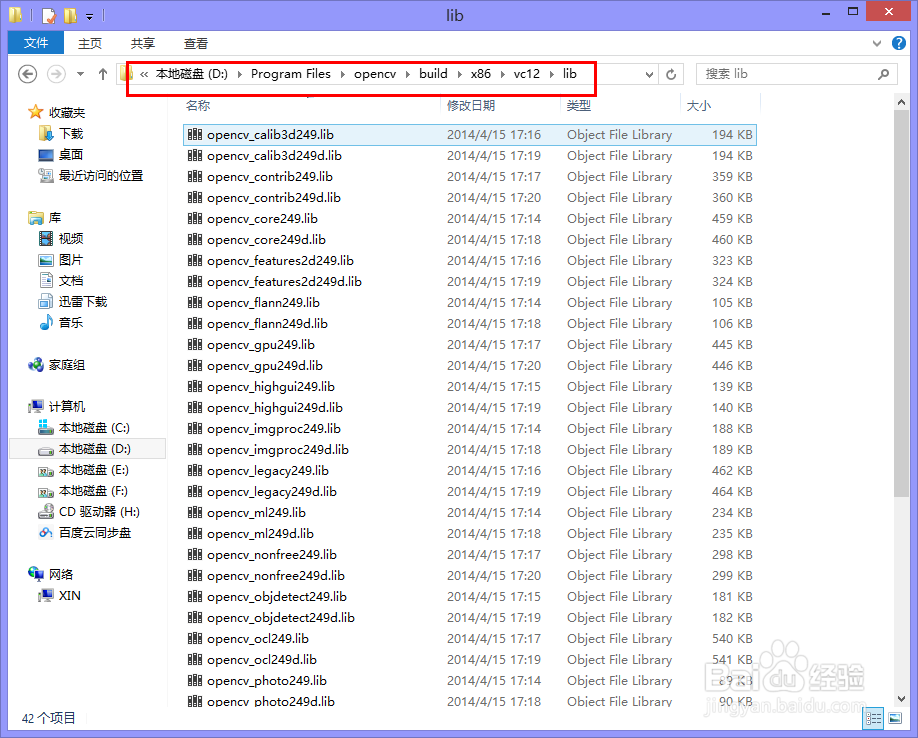

4、工程目录的配置（Debug）找到属性管理器，如果找不到，请安装下图方法找到。仇荸驼惦双击Debug|Win32打开如下窗口，设置如下：（下图红框项为设置项）1、包含目录：（VC++目录）D:\Program Files\opencv\build\includeD:\Program Files\opencv\build\include\opencvD:\Program Files\opencv\build\include\opencv22、库目录：（VC++目录）D:\Program Files\opencv\build\x86\vc12\lib3、连接器->输入->附加依赖项：opencv_ml249d.libopencv_calib3d249d.libopencv_contrib249d.libopencv_core249d.libopencv_features2d249d.libopencv_flann249d.libopencv_gpu249d.libopencv_highgui249d.libopencv_imgproc249d.libopencv_legacy249d.libopencv_objdetect249d.libopencv_ts249d.libopencv_video249d.libopencv_nonfree249d.libopencv_ocl249d.libopencv_photo249d.libopencv_stitching249d.libopencv_superres249d.libopencv_videostab249d.lib其实以上都是D:\Program Files\opencv\build\x86\vc12\lib下所有的lib文件，你会发现，有的后面带上d，有的没有d，这是因为Debug的就有d，Release则没有d。

5、工程目录的配置（Release）其他与Debug一样，只是连接器->输入->附加依赖项不一样，设就女蒿鸳置如下：opencv_objdetect249.libopencv_ts249.libopencv_video249.libopencv_nonfree249.libopencv_ocl249.libopencv_photo249.libopencv_stitching249.libopencv_superres249.libopencv_videostab249.libopencv_calib3d249.libopencv_contrib249.libopencv_core249.libopencv_features2d249.libopencv_flann249.libopencv_gpu249.libopencv_highgui249.libopencv_imgproc249.libopencv_legacy249.libopencv_ml249.lib

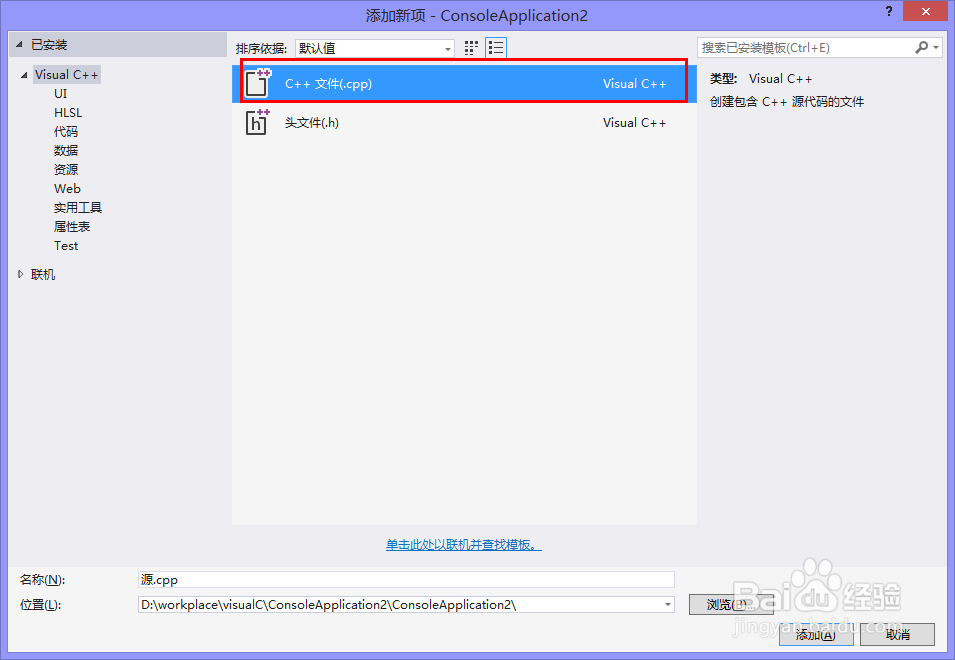

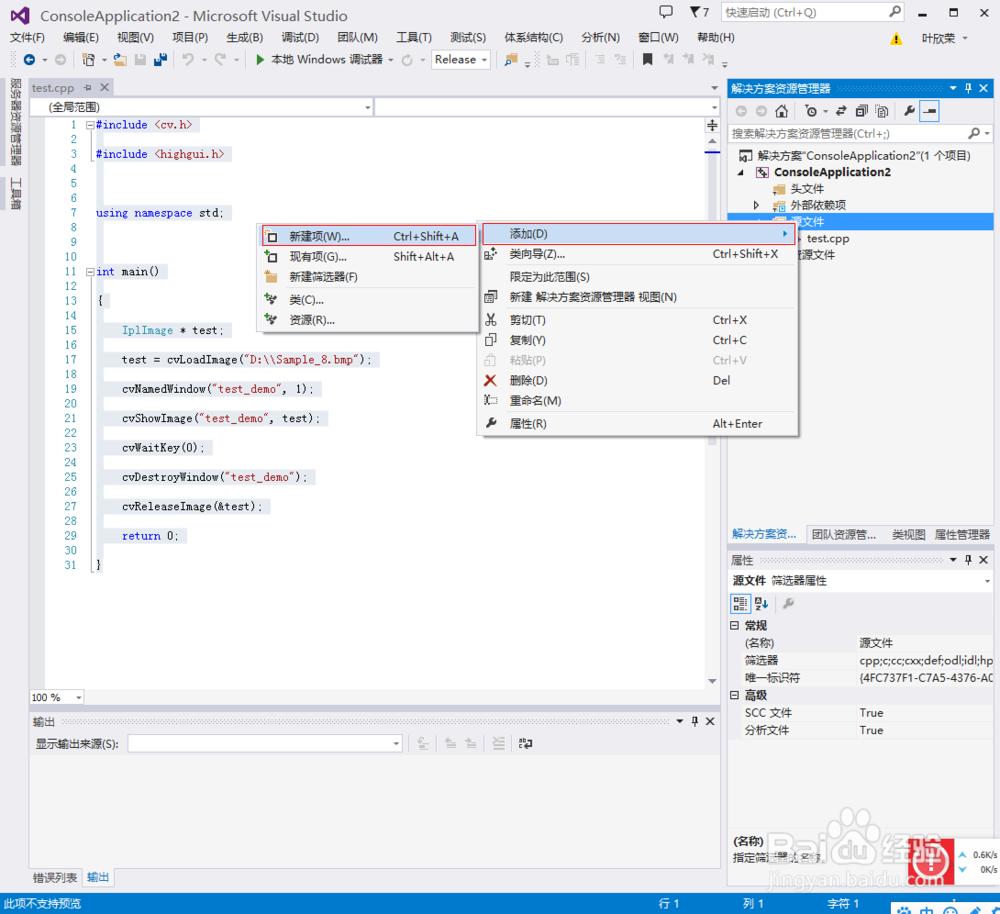

6、最终的测试1、新建一个cpp文件，如下图：在cpp文件上输入以下代码：#include <cv.h>#include <highgui.h>using namespace std;int main(){ IplImage * test; test = cvLoadImage("D:\\Sample_8.bmp");//图片路径 cvNamedWindow("test_demo", 1); cvShowImage("test_demo", test); cvWaitKey(0); cvDestroyWindow("test_demo"); cvReleaseImage(&test); return 0;}
