C#用迪杰斯特拉算法（Dijkst）求最短路径

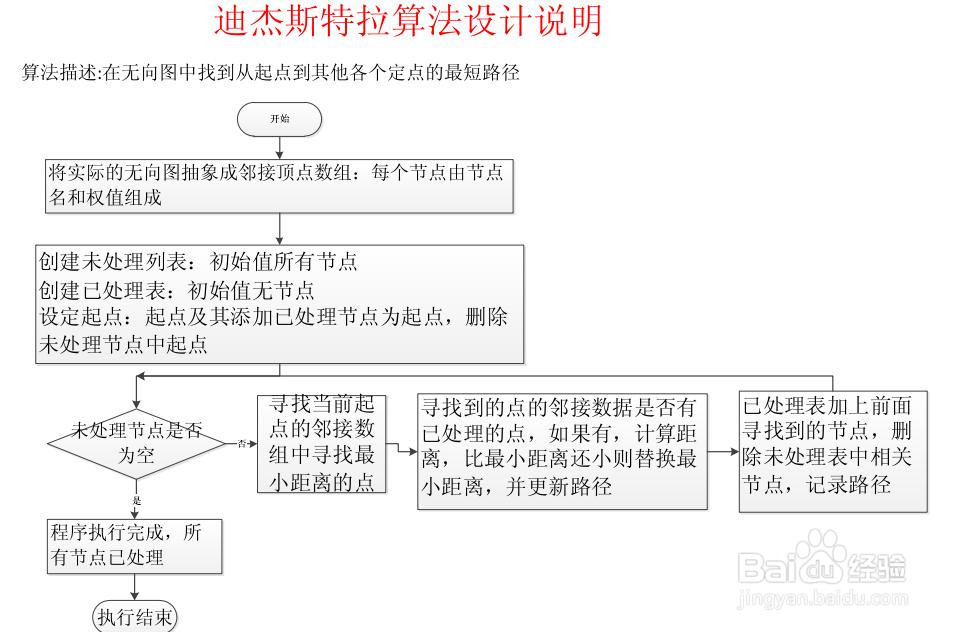

1、我要做这个算法，首先要理解迪杰斯特拉算法。然后能画图程序执行流程图，这里我就做了个简单的流程图

2、创建一个Windows窗体程序，程序界面如下。pictureBox1控件显示算法用到的基础数据图片；comboBox1设置算法的起点，默认"A"；算法检验按钮（btn_JY），执行算法。

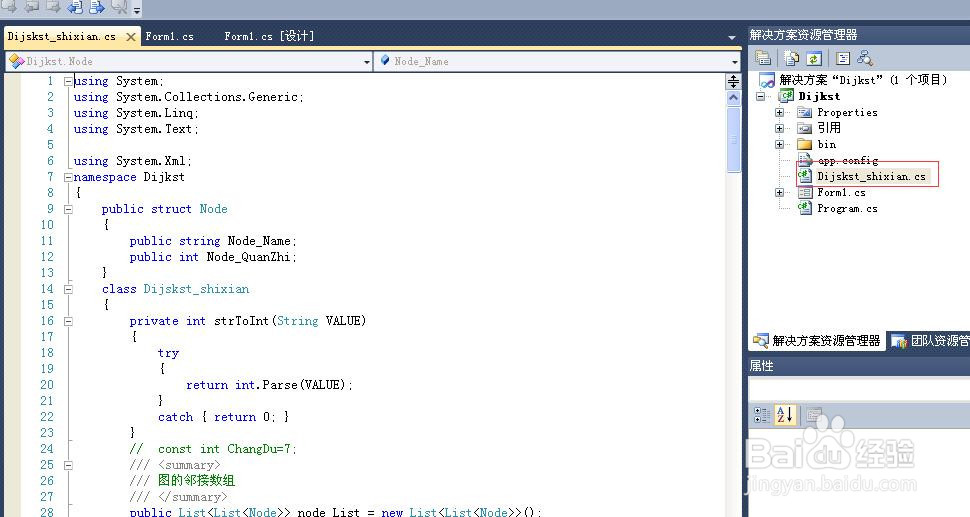

3、首先创建一个类“Dijskst_shixian.cs”，用来设计迪杰斯特拉算法的实现。

4、在类Dijskst_shixian.cs中定义了一个结构Node，这个节点记录点和权值。public struct Node { public string Node_Name; public int Node_QuanZhi; }

5、创建一个泛型对象：public List<List<Node>> node_List = new List<List<Node媪青怍牙>>(); 记录节点和权值。用create()方法创建图的邻接点public void Create() { node_List = new List<List<Node>>(); List<Node> nn = new List<Node>(); nn = new List<Node>(); Node node = new Node(); node.Node_QuanZhi = 0; node.Node_Name = "A"; nn.Add(node); Node node1 = new Node(); node1.Node_QuanZhi = 6; node1.Node_Name = "B"; nn.Add(node1); Node node2 = new Node(); node2.Node_QuanZhi = 3; node2.Node_Name = "C"; nn.Add(node2); node_List.Add(nn); nn = new List<Node>(); Node N = new Node(); N.Node_Name = "B"; N.Node_QuanZhi = 0; nn.Add(N); Node N1 = new Node(); N1.Node_Name = "A"; N1.Node_QuanZhi = 6; nn.Add(N1); Node N2 = new Node(); N2.Node_Name = "C"; N2.Node_QuanZhi = 2; nn.Add(N2); Node N3 = new Node(); N3.Node_Name = "D"; N3.Node_QuanZhi = 5; nn.Add(N3); node_List.Add(nn); nn = new List<Node>(); Node NN = new Node(); NN.Node_Name = "C"; NN.Node_QuanZhi = 0; nn.Add(NN); Node NN1 = new Node(); NN1.Node_Name = "A"; NN1.Node_QuanZhi = 3; nn.Add(NN1); Node NN2= new Node(); NN2.Node_Name = "B"; NN2.Node_QuanZhi = 2; nn.Add(NN2); Node NN3 = new Node(); NN3.Node_Name = "D"; NN3.Node_QuanZhi = 3; nn.Add(NN3); Node NN4 = new Node(); NN4.Node_Name = "E"; NN4.Node_QuanZhi = 4; nn.Add(NN4); node_List.Add(nn); nn = new List<Node>(); Node NNN = new Node(); NNN.Node_Name = "D"; NNN.Node_QuanZhi = 0; nn.Add(NNN); Node NNN1 = new Node(); NNN1.Node_Name = "B"; NNN1.Node_QuanZhi = 5; nn.Add(NNN1); Node NNN2 = new Node(); NNN2.Node_Name = "C"; NNN2.Node_QuanZhi = 3; nn.Add(NNN2); Node NNN3 = new Node(); NNN3.Node_Name = "E"; NNN3.Node_QuanZhi = 2; nn.Add(NNN3); Node NNN4 = new Node(); NNN4.Node_Name = "F"; NNN4.Node_QuanZhi = 4; nn.Add(NNN4); node_List.Add(nn); nn = new List<Node>(); Node NNNN = new Node(); NNNN.Node_Name = "E"; NNNN.Node_QuanZhi = 0; nn.Add(NNNN); Node NNNN1 = new Node(); NNNN1.Node_Name = "D"; NNNN1.Node_QuanZhi = 2; nn.Add(NNNN1); Node NNNN2 = new Node(); NNNN2.Node_Name = "C"; NNNN2.Node_QuanZhi = 4; nn.Add(NNNN2); Node NNNN3 = new Node(); NNNN3.Node_Name = "F"; NNNN3.Node_QuanZhi = 5; nn.Add(NNNN3); node_List.Add(nn); nn = new List<Node>(); Node NNNNN = new Node(); NNNNN.Node_Name = "F"; NNNNN.Node_QuanZhi = 0; nn.Add(NNNNN); Node NNNNN1 = new Node(); NNNNN1.Node_Name = "D"; NNNNN1.Node_QuanZhi = 3; nn.Add(NNNNN1); Node NNNNN2 = new Node(); NNNNN2.Node_Name = "E"; NNNNN2.Node_QuanZhi = 5; nn.Add(NNNNN2); node_List.Add(nn); nn = new List<Node>(); Node NNNNNN = new Node(); NNNNNN.Node_Name = "G"; NNNNNN.Node_QuanZhi = 0; nn.Add(NNNNNN); Node NNNNNN1 = new Node(); NNNNNN1.Node_Name = "D"; NNNNNN1.Node_QuanZhi = 2; nn.Add(NNNNNN1); Node NNNNNN2 = new Node(); NNNNNN2.Node_Name = "F"; NNNNNN2.Node_QuanZhi = 3; nn.Add(NNNNNN2); node_List.Add(nn); }

6、核心算法：List<string> WeiChuLiDingDian 屏顿幂垂= new List<string&爿讥旌护gt;(); List<string> ChuLiDian = new List<string>(); public List<Node> LJ = new List<Node>(); public List<string> LJ_Path = new List<string>();public void SuanFa(Node dingdian,List<List<Node>> ListListNode) { WeiChuLiDingDian.Clear(); for (int I = 0; I < ListListNode.Count;I++ ) WeiChuLiDingDian.Add(ListListNode[I][0].Node_Name); ChuLiDian.Clear(); LJ.Clear(); LJ_Path.Clear(); LJ_Path.Add(dingdian.Node_Name+"->"+dingdian.Node_Name); dingdian.Node_QuanZhi = 0; LJ.Add(dingdian); ChuLiDian.Add(dingdian.Node_Name); WeiChuLiDingDian.Remove(dingdian.Node_Name); int ChangDu = ListListNode.Count; for (int i = 0; i < ChangDu; i++) { for (int dd = 0; dd < ChangDu; dd++) { if (ListListNode[dd][0].Node_Name == dingdian.Node_Name) { //第一步:从邻接图顶点中找到最小距离 // int min = dingdian.Node_QuanZhi + node_List[dd][1].Node_QuanZhi; int min = 10000; Node xunzhao_node=new Node(); xunzhao_node.Node_Name = ""; string path = ""; // xunzhao_node.Node_Name = ListListNode[dd][1].Node_Name; for (int ljd = 1; ljd < ListListNode[dd].Count; ljd++) { if (WeiChuLiDingDian.Contains(ListListNode[dd][ljd].Node_Name)) { if (dingdian.Node_QuanZhi + ListListNode[dd][ljd].Node_QuanZhi < min) { min = dingdian.Node_QuanZhi + ListListNode[dd][ljd].Node_QuanZhi; xunzhao_node.Node_QuanZhi = min; xunzhao_node.Node_Name = ListListNode[dd][ljd].Node_Name; path = LJ_Path[LJ_Path.Count - 1] + "->" + xunzhao_node.Node_Name; } } } if (xunzhao_node.Node_Name == "") { if(WeiChuLiDingDian.Count>0) xunzhao_node.Node_Name = WeiChuLiDingDian[0]; path = xunzhao_node.Node_Name; } //寻找到了从顶点到邻接点最小距离，之后再从找到的点寻找邻接点 for (int xunzhaodaodian = 0; xunzhaodaodian < ChangDu; xunzhaodaodian++) { if (ListListNode[xunzhaodaodian][0].Node_Name == xunzhao_node.Node_Name) { for (int xzd_ljd = 1; xzd_ljd < ListListNode[xunzhaodaodian].Count; xzd_ljd++) { for(int lj=0;lj<LJ.Count;lj++) if (ListListNode[xunzhaodaodian][xzd_ljd].Node_Name == LJ[lj].Node_Name) { int minmin=LJ[lj].Node_QuanZhi+ ListListNode[xunzhaodaodian][xzd_ljd].Node_QuanZhi; if (min > minmin) { min = minmin; xunzhao_node.Node_QuanZhi = minmin; path = LJ_Path[lj] + "->" + xunzhao_node.Node_Name; } } } } } //查找成功 dingdian = xunzhao_node; LJ.Add(dingdian); ChuLiDian.Add(dingdian.Node_Name); WeiChuLiDingDian.Remove(dingdian.Node_Name); LJ_Path.Add(path); continue; } } } }

7、算法检验设计代码：创建一个对象：Dijskst_shixian dijs = new Dijskst_shixian();默认节点"A":if (comboBox1.Text != "") node.Node_Name = comboBox1.Text; else node.Node_Name = "A";执行创建和算法函数dijs.Create();dijs.SuanFa(node,dijs.node_List);显示输出信息：for (int i = 0; i < dijs.LJ.Count-1; i++) { richTextBox1.AppendText("起点"+node.Node_Name+"到顶点:"+dijs.LJ[i].Node_Name + " ;最短路径: " + dijs.LJ[i].Node_QuanZhi+" ; 路径: "+dijs.LJ_Path[i]+" ;\r\n"); }

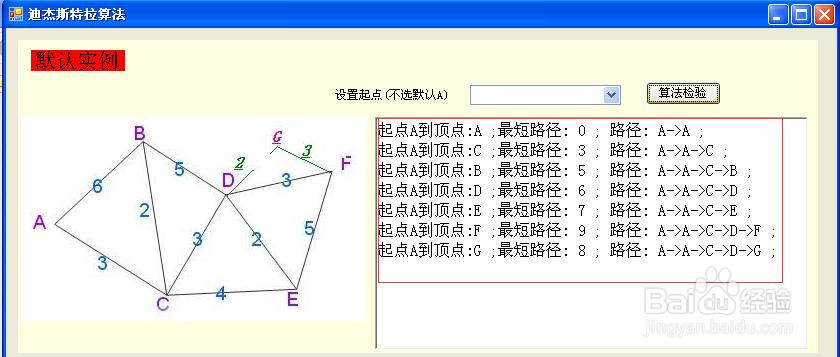

8、运行编译程序，执行“算法检验”，默认“A”为起点，计算A到其他点的最短路径，执行结果在红框中。

9、‍运行编译程序，执行“算法检验”，选择以“C”为起点，计算C到其他点的最短路径，执行结果在红框中。
