c++堆栈的应用:中缀表达式转化为后缀表达式

2025-10-27 21:34:13

1、首先假设我们需要转化的中缀表达式为:

a + b * c + ( d * e + f ) * g

正确转化结果应为:

a b c * + d e * f + g * +

(字母代表一种操作数,+、*为操作符)

下面介绍一下基于堆栈的算法。堆栈用于存储操作符。

c++堆栈的应用:中缀表达式转化为后缀表达式

2、从左到右扫描每一个字符。如果扫描到的字符是操作数(如a、b等),就直接输出这些操作数。

c++堆栈的应用:中缀表达式转化为后缀表达式

3、如果扫描到的字符是一个操作符,分三种情况:

(1)如果堆栈是空的,直接将操作符存储到堆栈中(push it)

(2)如果该操作符的优先级大于堆栈出口的操作符,就直接将操作符存储到堆栈中(push it)

(3)如果该操作符的优先级低于堆栈出口的操作符,就将堆栈出口的操作符导出(pop it), 直到该操作符的优先级大于堆栈顶端的操作符。将扫描到的操作符导入到堆栈中(push)。

c++堆栈的应用:中缀表达式转化为后缀表达式

c++堆栈的应用:中缀表达式转化为后缀表达式

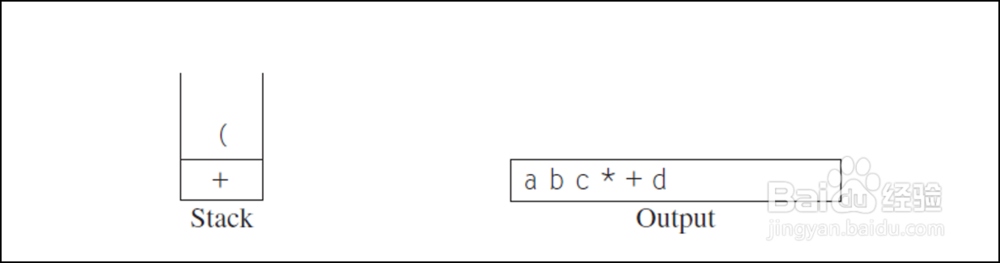

4、如果遇到的操作符是左括号"(”,就直接将该操作符输出到堆栈当中。该操作符只有在遇到右括号“)”的时候移除。这是一个特殊符号该特殊处理。

c++堆栈的应用:中缀表达式转化为后缀表达式

c++堆栈的应用:中缀表达式转化为后缀表达式

c++堆栈的应用:中缀表达式转化为后缀表达式

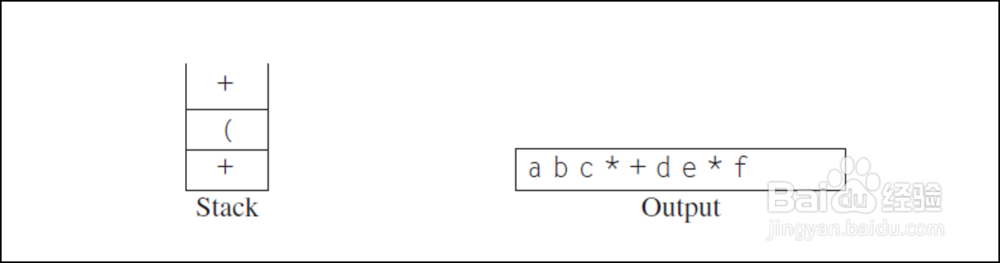

5、如果扫描到的操作符是右括号“)”,将堆栈中的操作符导出(pop)到output中输出,直到遇见左括号“(”。将堆栈中的左括号移出堆栈(pop )。继续扫描下一个字符

c++堆栈的应用:中缀表达式转化为后缀表达式

6、如果输入的中缀表达式已经扫描完了,但是堆栈中仍然存在操作符的时候,我们应该讲堆栈中的操作符导出并输入到output 当中。

c++堆栈的应用:中缀表达式转化为后缀表达式

c++堆栈的应用:中缀表达式转化为后缀表达式

7、以上是中缀表达式转化为后缀表达式的一种算法。下面我们给出这和算法的代码,希望读者们能够自己先写写代码再copy。下图是运行结果。

/* C++ implementation to convert infix expression to postfix*/

// Note that here we use std::stack  for Stack operations

#include <iostream>

#include<stack>

using namespace std;

//Function to return precedence of operators

int prec(char c)

{

    if(c == '^')

    return 3;

    else if(c == '*' || c == '/')

    return 2;

    else if(c == '+' || c == '-')

    return 1;

    else

    return -1;

}

// The main function to convert infix expression

//to postfix expression

void infixToPostfix(string s)

{

    std::stack<char> st;

    st.push('N');

    int l = s.length();

    string ns;

    for(int i = 0; i < l; i++)

    {

        // If the scanned character is an operand, add it to output string.

        if((s[i] >= 'a' && s[i] <= 'z')||(s[i] >= 'A' && s[i] <= 'Z'))

        ns+=s[i];

        // If the scanned character is an ‘(‘, push it to the stack.

        else if(s[i] == '(')

        st.push('(');

        // If the scanned character is an ‘)’, pop and to output string from the stack

        // until an ‘(‘ is encountered.

        else if(s[i] == ')')

        {

            while(st.top() != 'N' && st.top() != '(')

            {

                char c = st.top();

                st.pop();

                ns += c;

            }

            if(st.top() == '(')

            {

                char c = st.top();

                st.pop();

            }

        }

        //If an operator is scanned

        else{

            while(st.top() != 'N' && prec(s[i]) <= prec(st.top()))

            {

                char c = st.top();

                st.pop();

                ns += c;

            }

            st.push(s[i]);

        }

    }

    //Pop all the remaining elements from the stack

    while(st.top() != 'N')

    {

        char c = st.top();

        st.pop();

        ns += c;

    }

    cout << ns << endl;

}

//Driver program to test above functions

int main()

{

   string exp = "a+b*c+(d*e+f)*g";

    infixToPostfix(exp);

    return 0;

}

c++堆栈的应用:中缀表达式转化为后缀表达式
