51单片机如何判断哪个矩阵按钮按下详细解释

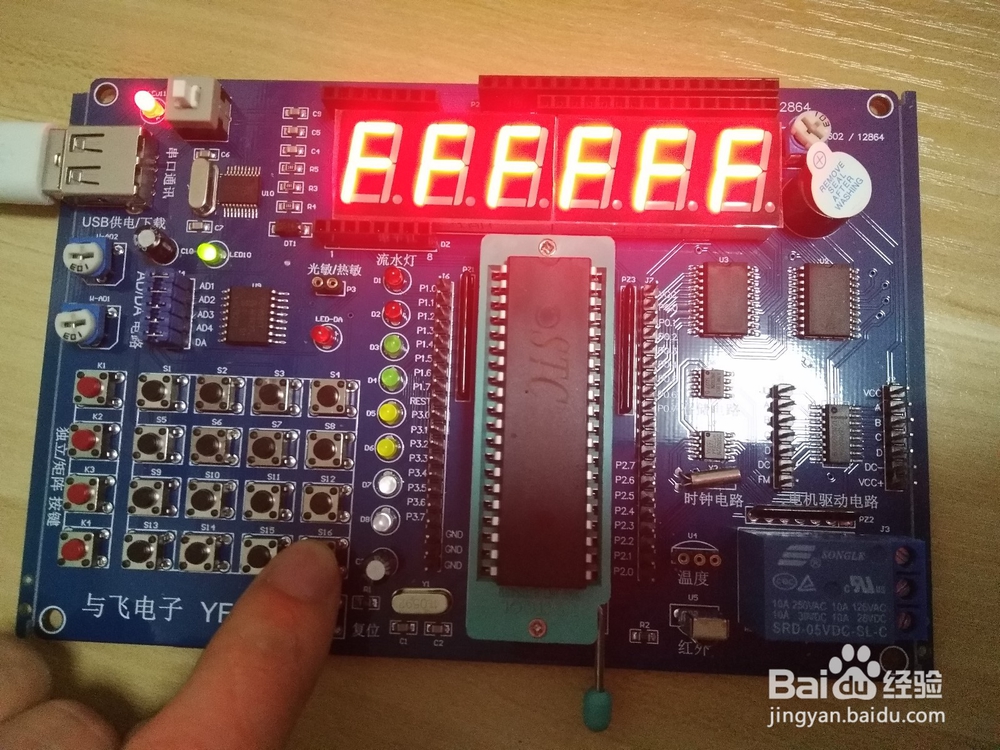

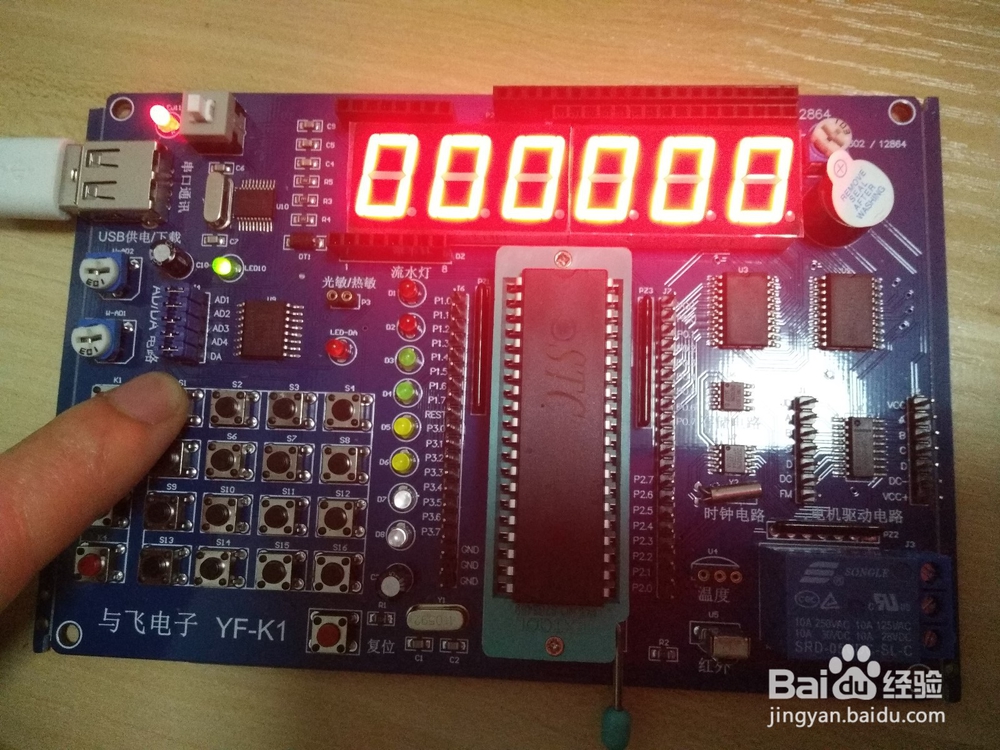

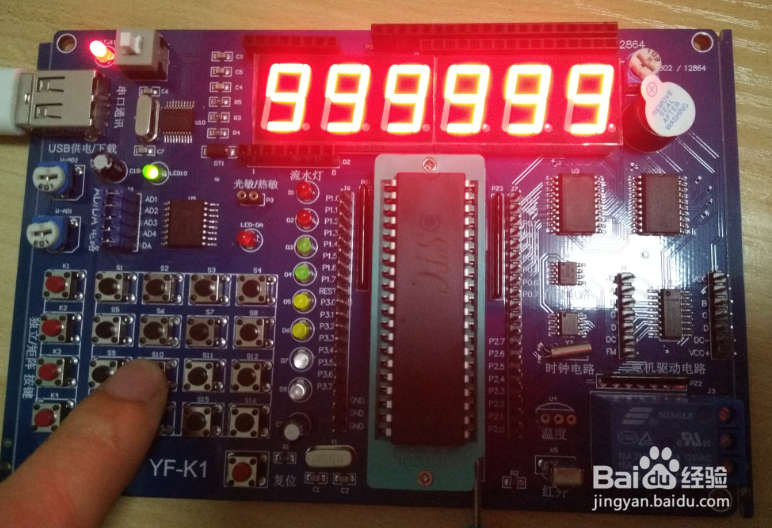

按下矩阵按钮，数码管显示对应的数字0-9、a-f



工具/原料

软件uvision4

stc-isp

方法/步骤

下图是解释

给定P3口的值集合

unsigned char code givenP3Table[]={0xfe,0xfd,0xfb,0xf7};

给定P3口后按下某个按钮响应的值集合



unsigned char code implyP3Table[4][4]=

            {{0xee,0xde,0xbe,0x7e},



            {0xed,0xdd,0xbd,0x7d},



            {0xeb,0xdb,0xbb,0x7b},



            {0xe7,0xd7,0xb7,0x77}};

#include<reg51.h>

sbit dula=P2^6;



sbit wela=P2^7;



void delay(unsigned char i)



{



 unsigned char j,k;



    for(j=i;j>0;j--)



      for(k=125;k>0;k--);



}



/*****按下了就返回0-15中对应的某个数，没按就返回16***开始*****/



unsigned char code table[]={0x3f,0x06,0x5b,0x4f,   //数码管0,1,2,3,



       0x66,0x6d,0x7d,0x07,   //数码管4,5,6,7,



       0x7f,0x6f,0x77,0x7c,   //数码管8,9,a,b,



       0x39,0x5e,0x79,0x71,}; //数码管c,d,e,f,

给定P3口的值集合

unsigned char code givenP3Table[]={0xfe,0xfd,0xfb,0xf7};

给定P3口后按下某个按钮响应的值集合

unsigned char code implyP3Table[4][4]={{0xee,0xde,0xbe,0x7e},



            {0xed,0xdd,0xbd,0x7d},



            {0xeb,0xdb,0xbb,0x7b},



            {0xe7,0xd7,0xb7,0x77}};



unsigned char code returnNumTable[4][4]={{0,1,2,3},



             {4,5,6,7},



             {8,9,10,11},



             {12,13,14,15}};

unsigned char ScanMatrix()



{



 unsigned char row,column;



 unsigned char key;



 unsigned char temp;

 for(row=0;row<4;row++)



 {



  P3=givenP3Table[row];



     temp=P3;



     temp=temp&0xf0;







  if(temp!=0xf0)



     {



       delay(10);



       if(temp!=0xf0)



          {



          temp=P3;



    for(column=0;column<4;column++)



           if(temp==implyP3Table[row][column])



      {



                key=returnNumTable[row][column];



       break;//有键按下就跳出for(column=0;column<4;column++)内循环



     }



       }



       while(temp!=0xf0)



       {



         temp=P3;



         temp=temp&0xf0;



       }



    break;//有键按下就跳出for(row=0;row<4;row++)外循环



      }



   else key=16;



 }



 return key;



}



/*****按下了就返回0-15中对应的某个数，没按就返回16***结束*****/

void display(unsigned char num)



{



     P0=table[num];



     dula=1;



     dula=0;



     P0=0xc0;



     wela=1;



     wela=0;



}



unsigned char ret,tmp;//主函数中不能定义局部变量



void main()



{



  dula=0;//数码管什么都不显示



  wela=0;



  tmp=16;//tmp初始值不能为0-15中某个数，会影响后面的判断



  while(1)



  {



 ret=ScanMatrix();



   if(ret!=tmp&&ret!=16)



 {



   tmp=ret;



      display(tmp);



 }



  }



}
