基于AM4379的OpenCV移植教程
1、OpenCV简介
OpenCV的全称是：Open Source Computer Vision Library。OpenCV是一个基于BSD许可（开源）发行的跨平台计算机视觉库，可以运行在Linux、Windows和Mac OS操作系统上。它轻量级而且高效——由一系列C函数和少量C++类构成，同时提供了Python、Ruby、MATLAB等语言的接口，实现了图像处理和计算机视觉方面的很多通用算法。
解压OpenCV2.4.11
本次移植的OpenCV版本为OpenCV-2.4.11。将opencv-2.4.11.zip压缩文件拷贝到Ubuntu的”/home/tronlong/AM437x”目录下，进入文件所在路径，执行如下命令，将opencv-2.4.11.zip解压，文件会解压在当前目录。
Host# unzip opencv-2.4.11.zip
配置和编译OpenCV2.4.11
进入源码目录，新建build目录用于存放工作文件。依次执行如下命令：
Host# cd opencv-2.4.11
Host# mkdir build
Host# cd build

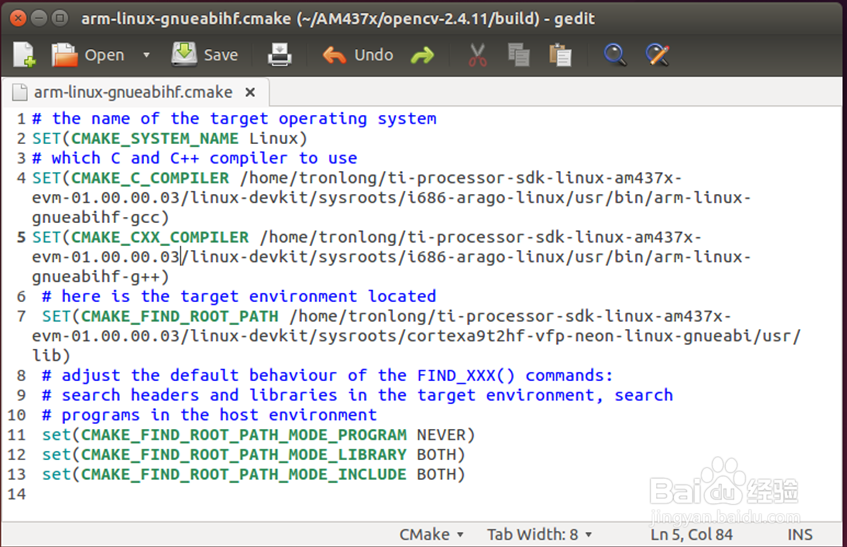

2、在build目录下，新建配置文件arm-linux-gnueabihfNaNake。
n 如使用V01.00.00.03版本Linux Processor-SDK，请写入如下内容：
# the name of the target operating system
SET(CMAKE_SYSTEM_NAME Linux)
# which C and C++ compiler to use
SET(CMAKE_C_COMPILER/home/tronlong/ti-processor-sdk-linux-am437x-evm-01.00.00.03/linux-devkit/sysroots/i686-arago-linux/usr/bin/arm-linux-gnueabihf-gcc)
SET(CMAKE_CXX_COMPILER /home/tronlong/ti-processor-sdk-linux-am437x-evm-01.00.00.03/linux-devkit/sysroots/i686-arago-linux/usr/bin/arm-linux-gnueabihf-g++)
# here is the target environment located
SET(CMAKE_FIND_ROOT_PATH /home/tronlong/ti-processor-sdk-linux-am437x-evm-01.00.00.03/linux-devkit/sysroots/cortexa9t2hf-vfp-neon-linux-gnueabi/usr/lib)
# adjust the default behaviour of the FIND_XXX() commands:
# search headers and libraries in the target environment, search
# programs in the host environment
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY BOTH)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE BOTH)
3、 如使用V03.03.00.04版本Linux Processor-SDK，请写入如下内容：
# the name of the target operating system
SET(CMAKE_SYSTEM_NAME Linux)
# which C and C++ compiler to use
SET(CMAKE_C_COMPILER/home/tronlong/ti-processor-sdk-linux-am437x-evm-03.03.00.04/linux-devkit/sysroots/x86_64-arago-linux/usr/bin/arm-linux-gnueabihf-gcc)
SET(CMAKE_CXX_COMPILER /home/tronlong/ti-processor-sdk-linux-am437x-evm-03.03.00.04/linux-devkit/sysroots/x86_64-arago-linux/usr/bin/arm-linux-gnueabihf-g++)
# here is the target environment located
SET(CMAKE_FIND_ROOT_PATH /home/tronlong/ti-processor-sdk-linux-am437x-evm-03.03.00.04/linux-devkit/sysroots/armv7ahf-neon-linux-gnueabi/usr/lib)
# adjust the default behaviour of the FIND_XXX() commands:
# search headers and libraries in the target environment, search
# programs in the host environment
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY BOTH)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE BOTH)
红色内容请修改为对应平台Linux Processor-SDK安装包实际的交叉编译工 具链和系统库文件路径。从文档拷贝上述内容时，指令可能会出现换行现象，拷贝时请仔细核对。
执行如下命令安装编译插件：
Host# sudo apt-get install cmake

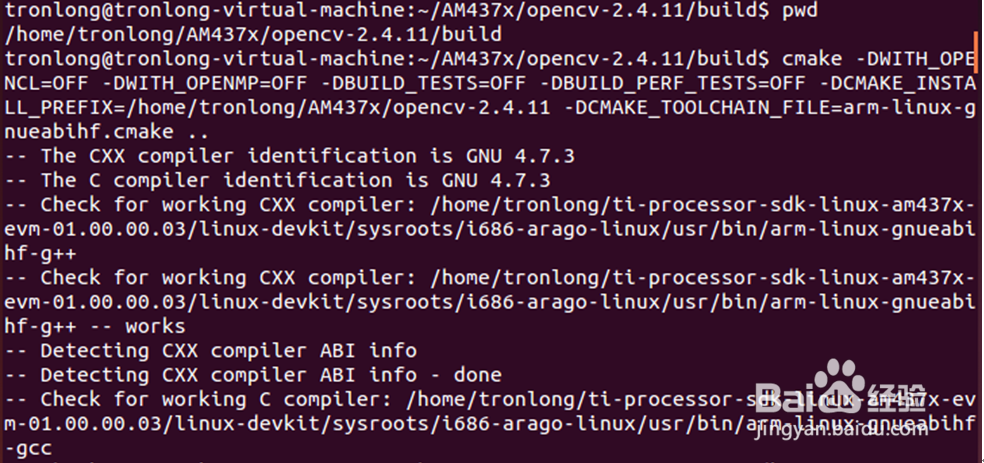

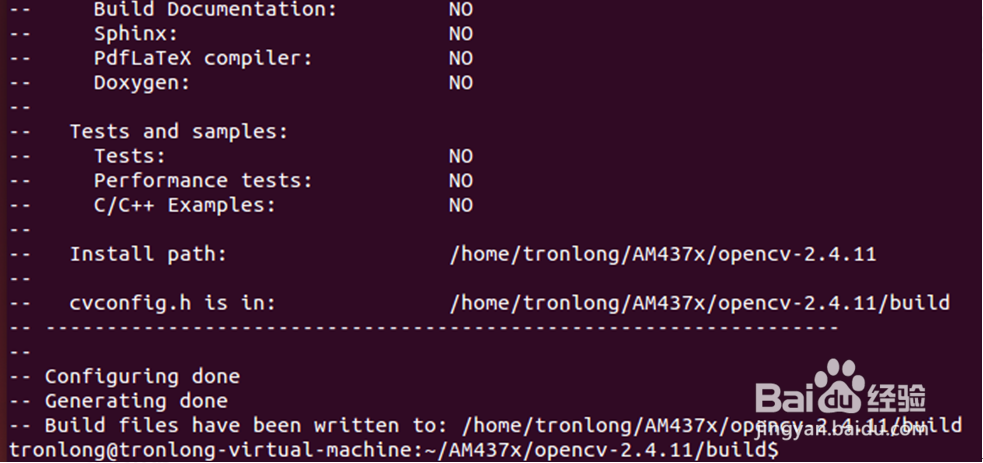

在build目录下执行如下命令进行配置并生成makefile：
Host# cmake -DWITH_OPENCL=OFF -DWITH_OPENMP=OFF -DBUILD_TESTS=OFF -DBUILD_PERF_TESTS=OFF -DCMAKE_INSTALL_PREFIX=/home/tronlong/AM437x/opencv-2.4.11 -DCMAKE_TOOLCHAIN_FILE=arm-linux-gnueabihf.cmake ..

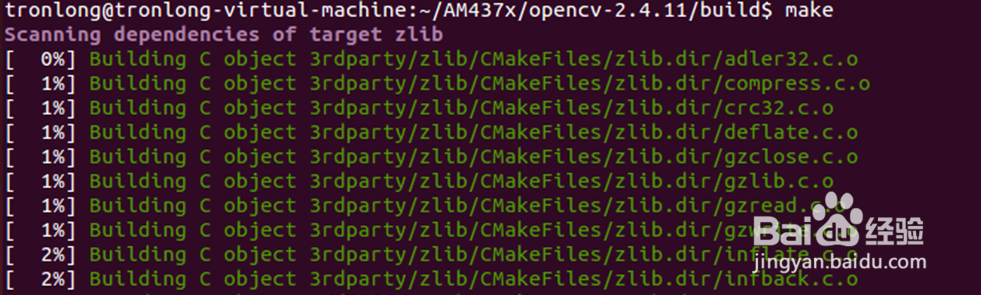

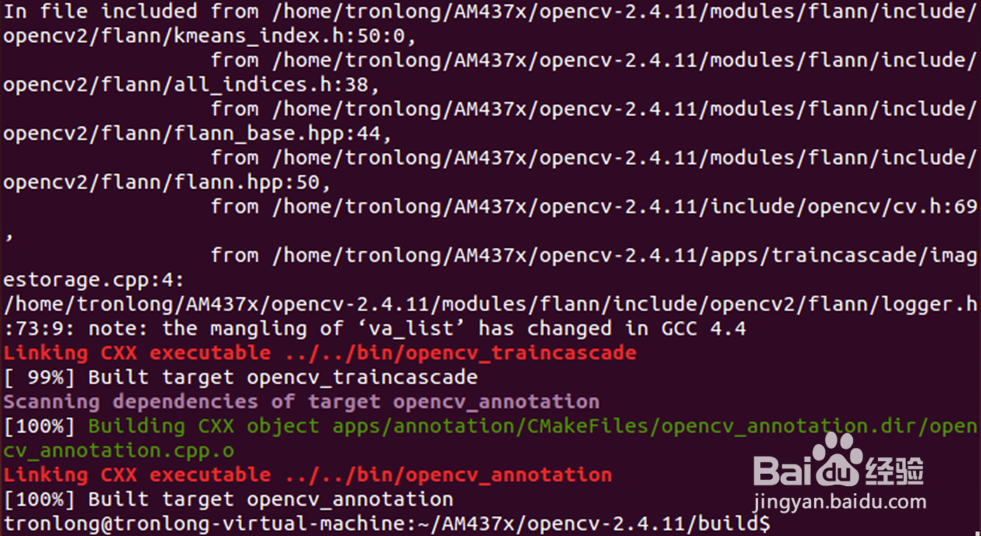

4、执行make指令，编译适用于AM437x平台的OpenCV库文件，结果如下图所示：
Host# make
5、执行如下指令将OpenCV库文件安装到”opencv-2.4.11/lib”目录中。
Host# make install

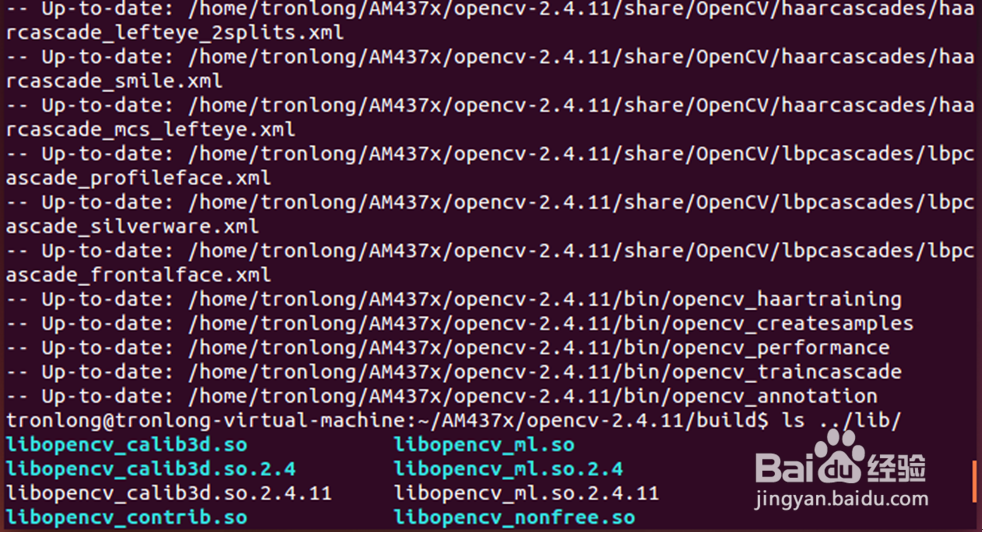

安装完成后如下图所示：
6、安装OpenCV库到开发板
将”opencv-2.4.11/lib”目录下所有文件拷贝到开发板文件系统”/usr/lib”目录中，即可在开发板运行基于OpenCV的相关例程。
