jQuery基于svg图片上传预览代码

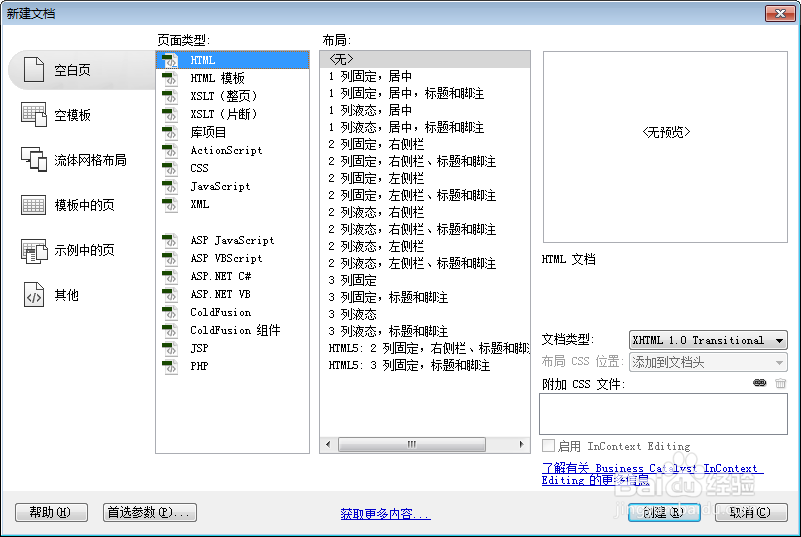

1、新建html文档。

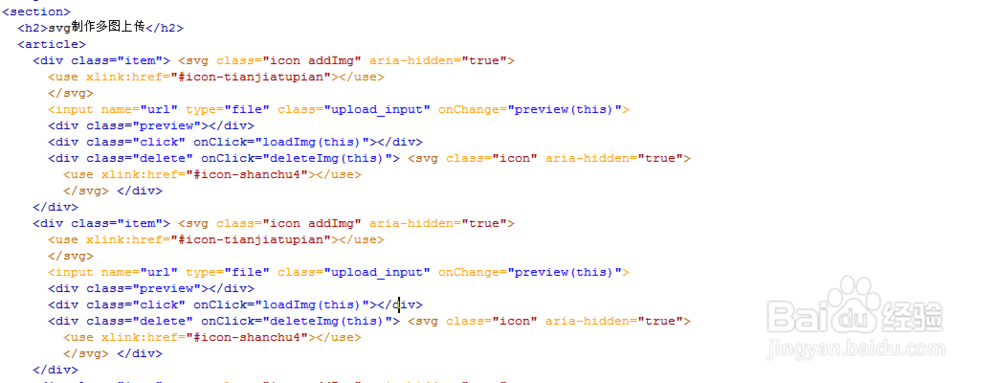

2、书写hmtl代码。<section>  <h2>svg制作多图上传</h2>  <article>    <div class="item"> <svg class="icon addImg" aria-hidden="true">      <use xlink:href="#icon-tianjiatupian"></use>      </svg>      <input name="url" type="file" class="upload_input" onChange="preview(this)">      <div class="preview"></div>      <div class="click" onClick="loadImg(this)"></div>      <div class="delete" onClick="deleteImg(this)"> <svg class="icon" aria-hidden="true">        <use xlink:href="#icon-shanchu4"></use>        </svg> </div>    </div>    <div class="item"> <svg class="icon addImg" aria-hidden="true">      <use xlink:href="#icon-tianjiatupian"></use>      </svg>      <input name="url" type="file" class="upload_input" onChange="preview(this)">      <div class="preview"></div>      <div class="click" onClick="loadImg(this)"></div>      <div class="delete" onClick="deleteImg(this)"> <svg class="icon" aria-hidden="true">        <use xlink:href="#icon-shanchu4"></use>        </svg> </div>    </div>

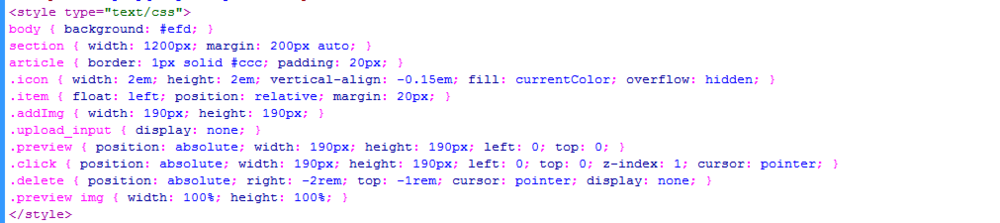

3、书写css代码。<style type="text/css">body { background: #efd; }section { width: 1200px; margin: 200px auto; }article { border: 1px solid #ccc; padding: 20px; }.icon { width: 2em; height: 2em; vertical-align: -0.15em; fill: currentColor; overflow: hidden; }.item { float: left; position: relative; margin: 20px; }.addImg { width: 190px; height: 190px; }.upload_input { display: none; }.preview { position: absolute; width: 190px; height: 190px; left: 0; top: 0; }.click { position: absolute; width: 190px; height: 190px; left: 0; top: 0; z-index: 1; cursor: pointer; }.delete { position: absolute; right: -2rem; top: -1rem; cursor: pointer; display: none; }.preview img { width: 100%; height: 100%; }</style>

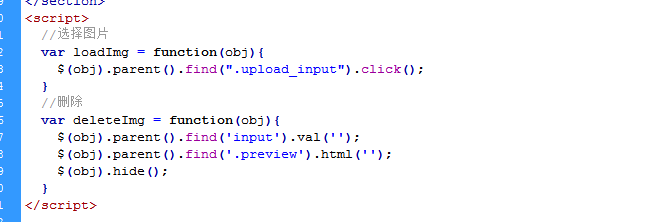

4、书写并添加js代码。<script>  //选择图片  var loadImg = function(obj){    $(obj).parent().find(".upload_input").click();  }  //删除  var deleteImg = function(obj){    $(obj).parent().find('input').val('');    $(obj).parent().find('.preview').html('');    $(obj).hide();  }</script>

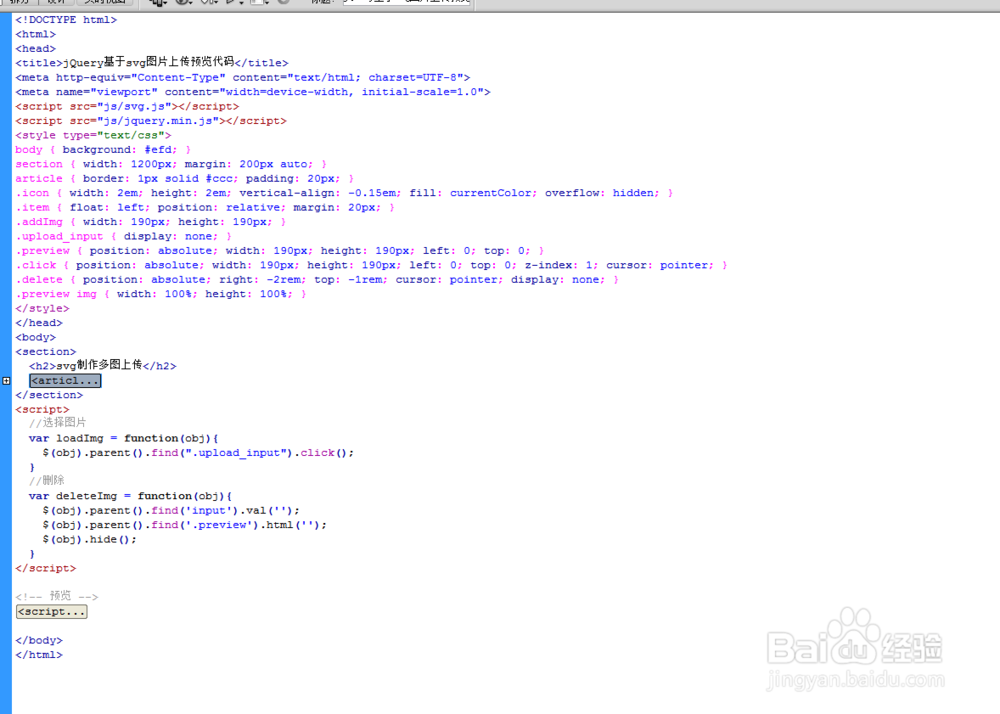

5、代码整体结构。

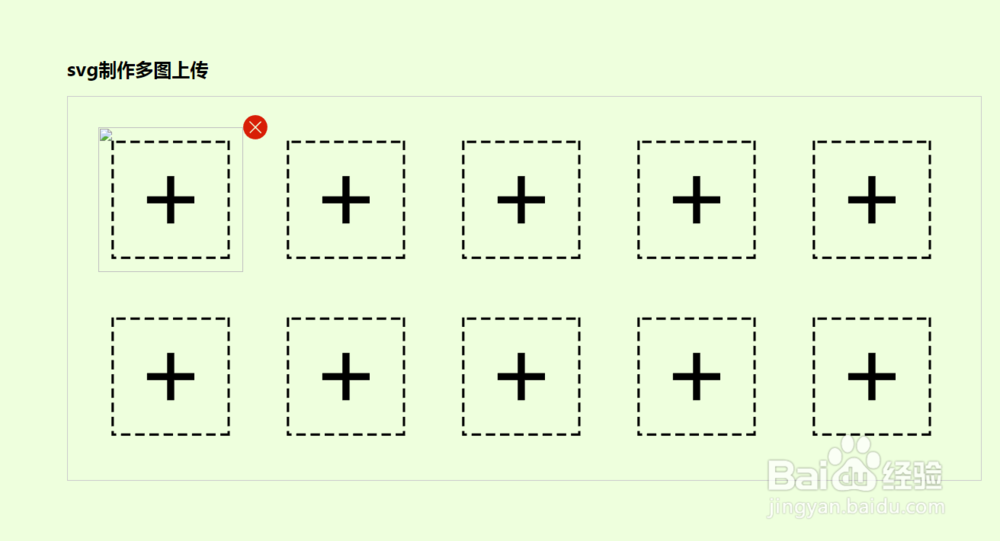

6、查看效果。
